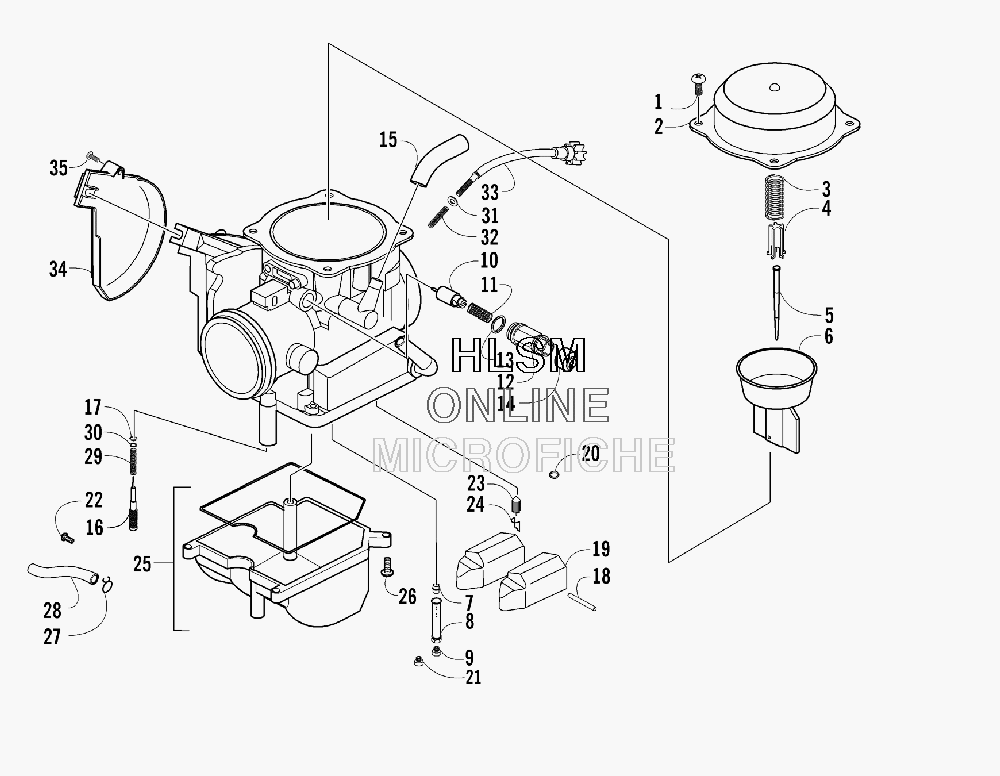

CARBURETOR ASSEMBLY для Arctic Cat 250 DVX (BLACK - RED) [A2008KSE2BUSD] - 2008 года выпуска`
-
№АртикулНазвание
-
3305-537 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-002 SCREW, PAN-HEADSCREW, PAN-HEAD
-
25507-051 TOPTOP
-
33305-432 SPRING, COMPRESSIONSPRING, COMPRESSION
-
43305-538 SEAT, SPRINGSEAT, SPRING
-
53305-540 NEEDLE, JETNEEDLE, JET
-
63305-433 PISTON, VACUUMPISTON, VACUUM
-
73305-436 JET, NEEDLEJET, NEEDLE
-
85507-047 HOLDER, JET NEEDLEHOLDER, JET NEEDLE
-
95507-126 JET, MAIN - 115JET, MAIN - 115
-
105507-022 VALVE, STARTERVALVE, STARTER
-
115507-023 SPRING, COILSPRING, COIL
-
125507-025 CAPCAP
-
135507-024 O-RINGO-RING
-
145507-026 CABLE, SEALING CAPCABLE, SEALING CAP
-
153305-427 TUBETUBE
-
163305-442 SCREW, PILOTSCREW, PILOT
-
173304-237 O-RINGO-RING
-
183304-451 PIN, FLOAT ARMPIN, FLOAT ARM
-
193305-550 FLOAT, SETFLOAT, SET
-
205507-068 O-RINGO-RING
-
213305-539 JET, SLOWJET, SLOW
-
225507-050 SCREW, DRAINSCREW, DRAIN
-
233304-242 VALVE, FLOAT (INC. 24)VALVE, FLOAT (INC. 24)
-
253305-430 CHAMBER, FLOAT - ASSEMBLYCHAMBER, FLOAT - ASSEMBLY
-
265507-017 SCREW, PAN-HEADSCREW, PAN-HEAD
-
273304-474 CLIP, TUBECLIP, TUBE
-
283305-428 TUBE, DRAINTUBE, DRAIN
-
295507-226 SPRINGSPRING
-
305507-225 WASHERWASHER
-
315507-028 WASHERWASHER
-
325507-029 SPRINGSPRING
-
333305-437 SCREW, STOPSCREW, STOP
-
343305-441 COVER, TOP - ASSEMBLYCOVER, TOP - ASSEMBLY
-
355507-037 SCREW, PAN-HEADSCREW, PAN-HEAD
