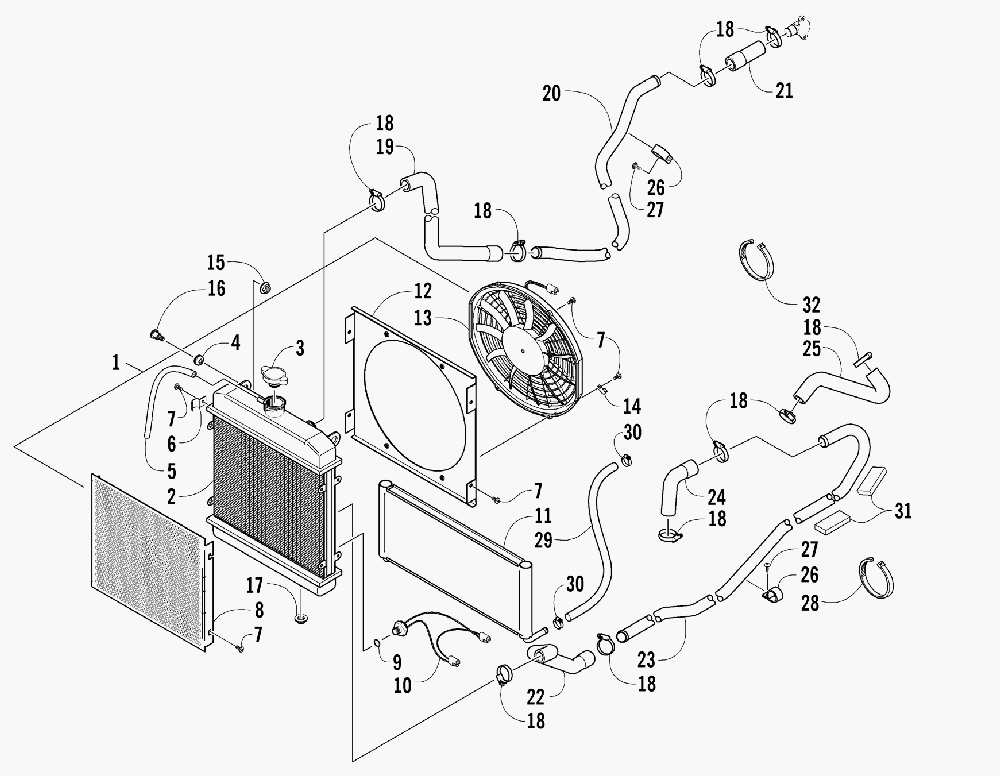

COOLING ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2007P2S4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-116 RADIATOR - ASSEMBLY (INC. 2-14)
    RADIATOR - ASSEMBLY (INC. 2-14)
  • 2
    0413-043 ...RADIATOR
    ...RADIATOR
  • 3
    0413-002 ...CAP, RADIATOR
    ...CAP, RADIATOR
  • 4
    0423-030 ...GROMMET
    ...GROMMET
  • 5
    0610-016 ...HOSE - 25 FT
    ...HOSE - 25 FT
  • 6
    0423-351 ...CLAMP, WIRE
    ...CLAMP, WIRE
  • 7
    8475-512 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 8
    0413-007 ...SCREEN, RADIATOR
    ...SCREEN, RADIATOR
  • 9
    0423-390 ...O-RING
    ...O-RING
  • 10
    0413-045 ...SENSOR, TEMPERATURE - COOLANT
    ...SENSOR, TEMPERATURE - COOLANT
  • 11
    0413-122 ...COOLER, OIL
    ...COOLER, OIL
  • 12
    0413-124 ...SHROUD, FAN
    ...SHROUD, FAN
  • 13
    0413-123 ...FAN, COOLING
    ...FAN, COOLING
  • 14
    0123-397 ...CLAMP, CABLE
    ...CLAMP, CABLE
  • 15
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 16
    0423-484 SCREW, SHOULDER
    SCREW, SHOULDER
  • 17
    0423-028 BUSHING, STEM
    BUSHING, STEM
  • 18
    0423-496 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0410-092 HOSE, COOLANT - UPPER RADIATOR
    HOSE, COOLANT - UPPER RADIATOR
  • 20
    0410-089 PIPE, COOLANT - UPPER
    PIPE, COOLANT - UPPER
  • 21
    0410-091 HOSE, COOLANT - UPPER ENGINE
    HOSE, COOLANT - UPPER ENGINE
  • 22
    0410-094 HOSE, COOLANT - LOWER RADIATOR
    HOSE, COOLANT - LOWER RADIATOR
  • 23
    0410-090 PIPE, COOLANT - LOWER
    PIPE, COOLANT - LOWER
  • 24
    0410-093 HOSE, COOLANT - LOWER ENGINE
    HOSE, COOLANT - LOWER ENGINE
  • 25
    0410-095 HOSE, COOLANT - REAR
    HOSE, COOLANT - REAR
  • 26
    0423-594 CLAMP, PIPE - COOLANT
    CLAMP, PIPE - COOLANT
  • 27
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 28
    0123-903 CABLE TIE - 11.5 IN.
    CABLE TIE - 11.5 IN.
  • 29
    0410-097 HOSE, OIL - LOWER
    HOSE, OIL - LOWER
  • 29
    0410-098 HOSE, OIL - UPPER
    HOSE, OIL - UPPER
  • 30
    0623-028 CLAMP
    CLAMP
  • 31
    0406-288 PAD
    PAD
  • 32
    0623-751 CABLE TIE, REUSEABLE
    CABLE TIE, REUSEABLE
