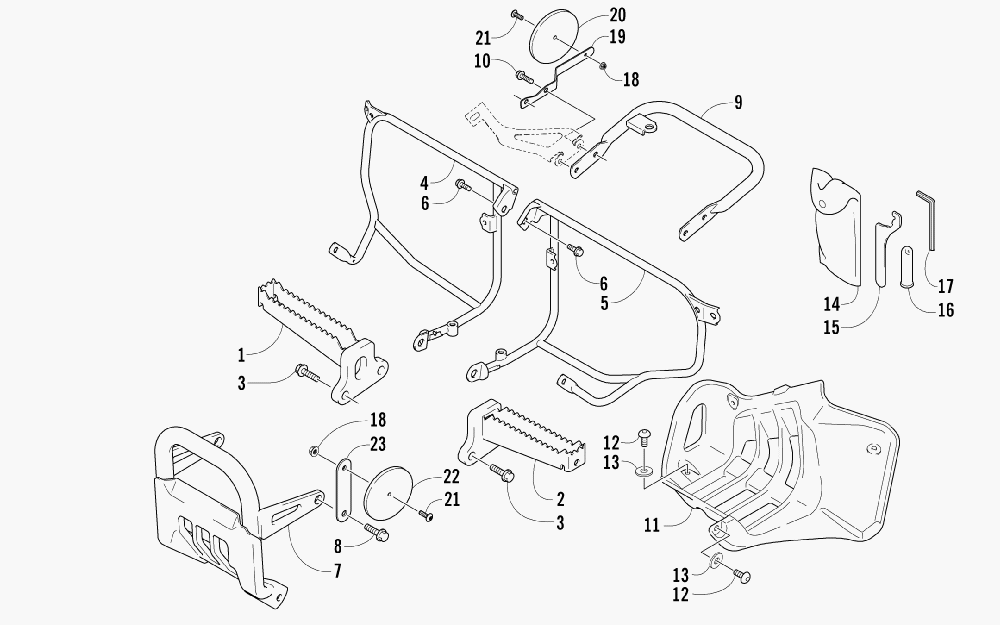

FOOTREST ASSEMBLY для Arctic Cat DVX 400 (TONY STEWART EDITION) [A2007DVI2AUSX] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    3406-009 FOOTREST - RIGHT
    FOOTREST - RIGHT
  • 2
    3406-010 FOOTREST - LEFT
    FOOTREST - LEFT
  • 3
    3423-636 BOLT
    BOLT
  • 4
    3406-136 SUPPORT, MUDGUARD - RIGHT
    SUPPORT, MUDGUARD - RIGHT
  • 5
    3406-164 SUPPORT, MUDGUARD - LEFT
    SUPPORT, MUDGUARD - LEFT
  • 6
    3423-633 BOLT
    BOLT
  • 7
    3406-148 GRIP, FRONT
    GRIP, FRONT
  • 8
    3004-630 BOLT
    BOLT
  • 9
    3406-149 GRIP, REAR
    GRIP, REAR
  • 10
    3006-544 BOLT
    BOLT
  • 11
    3406-070 GUARD, FOOT - RIGHT - BLACK
    GUARD, FOOT - RIGHT - BLACK
  • 11
    3406-071 GUARD, FOOT - LEFT - BLACK
    GUARD, FOOT - LEFT - BLACK
  • 12
    3423-661 BOLT
    BOLT
  • 13
    3423-690 WASHER
    WASHER
  • 14
    3436-017 KIT, TOOL
    KIT, TOOL
  • 15
    3436-019 WRENCH, SPANNER
    WRENCH, SPANNER
  • 16
    3436-020 GAUGE, AIR PRESSURE
    GAUGE, AIR PRESSURE
  • 17
    3436-018 WRENCH, HEX
    WRENCH, HEX
  • 18
    8424-502 NUT, FLANGE
    NUT, FLANGE
  • 19
    2506-412 BRACKET, REFLECTOR - REAR - RIGHT
    BRACKET, REFLECTOR - REAR - RIGHT
  • 19
    2506-413 BRACKET, REFLECTOR - REAR - LEFT
    BRACKET, REFLECTOR - REAR - LEFT
  • 20
    4606-877 REFLECTOR, REAR - RED
    REFLECTOR, REAR - RED
  • 21
    0423-371 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    4606-878 REFLECTOR, FRONT - AMBER
    REFLECTOR, FRONT - AMBER
  • 23
    2506-389 BRACKET, REFLECTOR - FRONT
    BRACKET, REFLECTOR - FRONT
