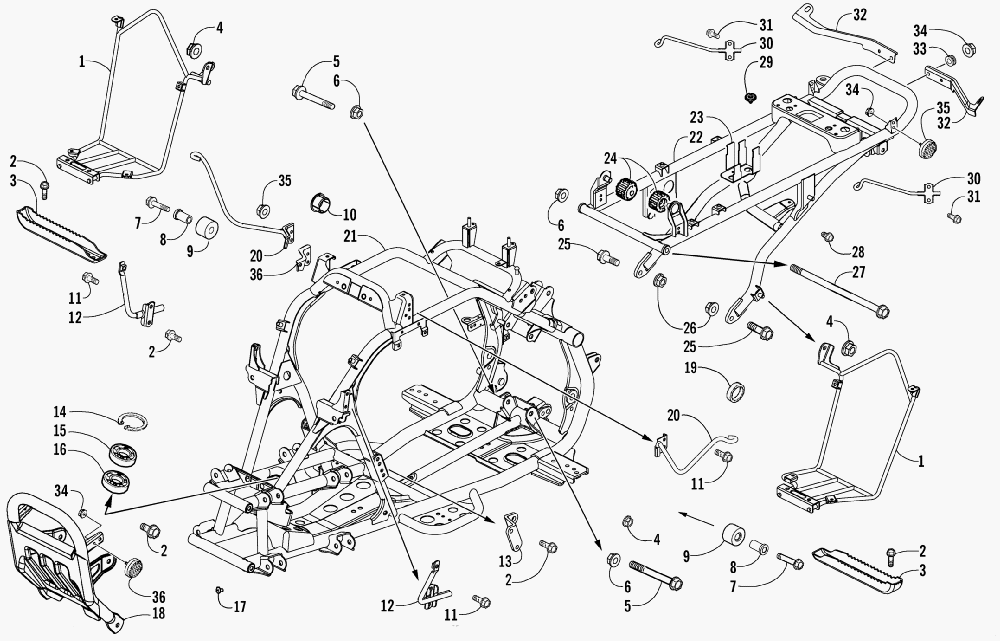

FRAME AND RELATED PARTS ASSEMBLY для Arctic Cat DVX 250 (RED) [A2007KSE2BUSR] - 2007 года выпуска`
![](/wa-data/public/shop/sheme/arctic-cat/atv/59179887-90a8-441a-b3ed-1bbdf7c38a76.gif)
-
№АртикулНазвание
-
13304-354 BRACKET, MOUNTING - FENDER - RIGHTBRACKET, MOUNTING - FENDER - RIGHT
-
13304-356 BRACKET, MOUNTING - FENDER - LEFTBRACKET, MOUNTING - FENDER - LEFT
-
23304-543 BOLT, FLANGEBOLT, FLANGE
-
33304-346 REINFORCEMENT, FLOORREINFORCEMENT, FLOOR
-
43303-332 NUT, FLANGENUT, FLANGE
-
53304-183 SCREW, CAPSCREW, CAP
-
63304-031 NUTNUT
-
73304-408 BOLT, FLANGEBOLT, FLANGE
-
83304-701 SLEEVE, COLLARSLEEVE, COLLAR
-
93304-362 GROMMET, RUBBERGROMMET, RUBBER
-
103304-658 CAP, ENDCAP, END
-
113304-553 SCREW, CAPSCREW, CAP
-
123304-352 BRACKET, SUPPORT - FENDER - FRONT - RIGHTBRACKET, SUPPORT - FENDER - FRONT - RIGHT
-
123304-353 BRACKET, SUPPORT - FENDER - FRONT - LEFTBRACKET, SUPPORT - FENDER - FRONT - LEFT
-
133303-938 BRACKET, HANGERBRACKET, HANGER
-
143304-150 CIRCLIPCIRCLIP
-
153304-203 BEARINGBEARING
-
163303-298 SEAL, OILSEAL, OIL
-
173303-740 BRACKET, MOUNTING - RADIATORBRACKET, MOUNTING - RADIATOR
-
183305-270 BUMPER, FRONTBUMPER, FRONT
-
193304-064 SEAL, DUSTSEAL, DUST
-
203304-350 BRACKET, MOUNTING - FENDER SUPPORT - LEFTBRACKET, MOUNTING - FENDER SUPPORT - LEFT
-
203304-351 BRACKET, MOUNTING - FENDER SUPPORT - RIGHTBRACKET, MOUNTING - FENDER SUPPORT - RIGHT
-
213304-338 FRAME, MAIN - FRONTFRAME, MAIN - FRONT
-
223305-271 FRAME, MAIN - REARFRAME, MAIN - REAR
-
233304-339 BRACKET, MOUNTING - STARTER/MAGNETO SWITCHBRACKET, MOUNTING - STARTER/MAGNETO SWITCH
-
243304-245 CUSHION, GAS TANKCUSHION, GAS TANK
-
253304-181 BOLT, FLANGEBOLT, FLANGE
-
263303-333 NUT, FLANGENUT, FLANGE
-
273304-184 BOLT, FLANGEBOLT, FLANGE
-
283304-435 BOLT, FLANGEBOLT, FLANGE
-
293304-057 CLIP, FENDERCLIP, FENDER
-
303304-348 BRACKET, SUPPORT - FENDER - REAR - RIGHTBRACKET, SUPPORT - FENDER - REAR - RIGHT
-
303304-349 BRACKET, SUPPORT - FENDER - REAR - LEFTBRACKET, SUPPORT - FENDER - REAR - LEFT
-
313305-344 BOLT, FLANGEBOLT, FLANGE
-
323304-344 BRACKET, MOUNTING - FENDER - REAR - LEFTBRACKET, MOUNTING - FENDER - REAR - LEFT
-
323304-345 BRACKET, MOUNTING - FENDER - REAR - RIGHTBRACKET, MOUNTING - FENDER - REAR - RIGHT
-
333303-239 GROMMET, RUBBERGROMMET, RUBBER
-
343304-654 NUT, FLANGENUT, FLANGE
-
353305-273 REFLECTOR, RED - REARREFLECTOR, RED - REAR
-
363305-272 REFLECTOR, AMBER - FRONTREFLECTOR, AMBER - FRONT
-
373303-935 BRACKET, SUPPORT - GAS TANKBRACKET, SUPPORT - GAS TANK
