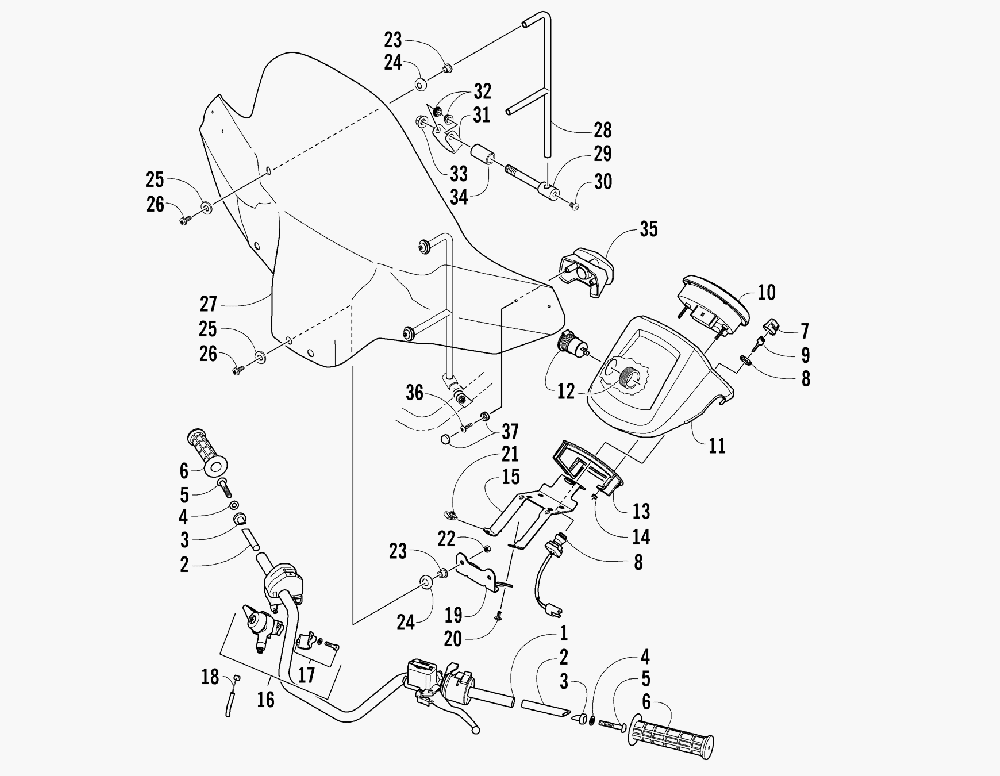

HANDLEBAR AND WINDSHIELD ASSEMBLY для Arctic Cat 650 H1 TRV LE (BLACK) [A2007TBS4BUSQ] - 2007 года выпуска
-
№АртикулНазвание
-
0436-948 COMPLETE WINDSHIELD KITCOMPLETE WINDSHIELD KIT
-
10505-476 TUBE, HANDLEBARTUBE, HANDLEBAR
-
20405-218 PLUG, HANDLEBARPLUG, HANDLEBAR
-
30405-149 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
48050-247 WASHERWASHER
-
58477-845 SCREW, MACHINESCREW, MACHINE
-
60405-147 GRIP, HANDLEBARGRIP, HANDLEBAR
-
70409-013 COVER, KEYCOVER, KEY
-
80430-036 SWITCH, IGNITION - ASSEMBLY (INC. 9)SWITCH, IGNITION - ASSEMBLY (INC. 9)
-
93409-007 ...KEY, IGNITION - BLANK (C SERIES)...KEY, IGNITION - BLANK (C SERIES)
-
93409-011 ...KEY, IGNITION - BLANK (D SERIES)...KEY, IGNITION - BLANK (D SERIES)
-
93409-012 ...KEY, IGNITION - BLANK (E SERIES)...KEY, IGNITION - BLANK (E SERIES)
-
93409-013 ...KEY, IGNITION - BLANK (F SERIES)...KEY, IGNITION - BLANK (F SERIES)
-
100520-025 GAUGE, LCDGAUGE, LCD
-
110405-191 INSTRUMENT PODINSTRUMENT POD
-
120641-897 OUTLET, ACCESSORY - 12VOUTLET, ACCESSORY - 12V
-
130420-065 CLAMP, PLASTICCLAMP, PLASTIC
-
140423-493 NUT W/WASHERNUT W/WASHER
-
151506-578 BRACKET, MOUNTING - INSTRUMENT PODBRACKET, MOUNTING - INSTRUMENT POD
-
160502-527 CONTROL, DIFFERENTIAL LOCK (INC. 17)CONTROL, DIFFERENTIAL LOCK (INC. 17)
-
170502-613 ...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT...CLAMP, DIFFERENTIAL LOCK CONTROL - KIT
-
180487-030 CABLE, DIFFERENTIAL LOCKCABLE, DIFFERENTIAL LOCK
-
190541-300 BRACKET, MOUNTING - WINDSHIELDBRACKET, MOUNTING - WINDSHIELD
-
208471-616 SCREW, MACHINESCREW, MACHINE
-
210423-549 CLIPCLIP
-
220423-531 NUT, LOCKNUT, LOCK
-
231441-054 GROMMET, CAPGROMMET, CAP
-
241441-062 GROMMET, RUBBERGROMMET, RUBBER
-
250423-528 WASHERWASHER
-
260423-527 SCREW, MACHINESCREW, MACHINE
-
271441-563 WINDSHIELDWINDSHIELD
-
281441-535 ROD, SUPPORTROD, SUPPORT
-
291441-051 BOLT, WINDSHIELDBOLT, WINDSHIELD
-
300423-529 SCREW, MACHINESCREW, MACHINE
-
311441-053 BRACKET, CLAMPBRACKET, CLAMP
-
321441-055 SPACER, CLAMPSPACER, CLAMP
-
330423-530 NUT, LOCKNUT, LOCK
-
*1441-063 WRENCH, ALLENWRENCH, ALLEN
-
*0453-412 INSTRUCTIONSINSTRUCTIONS
-
341441-052 SPACERSPACER
-
354639-463 MIRROR, KITMIRROR, KIT
-
360623-784 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
370124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
