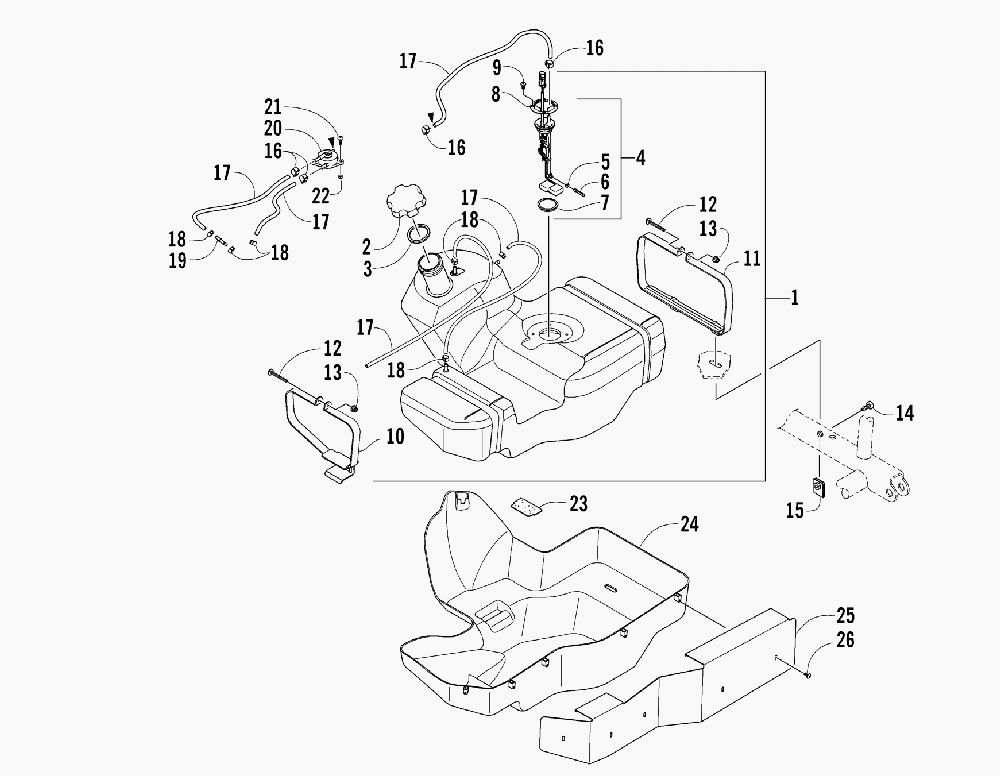

GAS TANK ASSEMBLY для Arctic Cat 650 H1 TBX (RED) [A2007BBS4BUSR] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-152 TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-13)
    TANK, GAS - ASSEMBLY W/STRAPS (INC. 2-13)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, GAS TANK CAP
    ......GASKET, GAS TANK CAP
  • 4
    0570-113 ...SENSOR, FUEL LEVEL (INC. 5-7)
    ...SENSOR, FUEL LEVEL (INC. 5-7)
  • 5
    0423-603 ......CLAMP, HOSE
    ......CLAMP, HOSE
  • 6
    0470-475 ......FILTER, FUEL
    ......FILTER, FUEL
  • 7
    0470-521 ......SEAL, FUEL LEVEL SENSOR
    ......SEAL, FUEL LEVEL SENSOR
  • 8
    0470-639 ...PLATE, MOUNTING - FUEL LEVEL SENSOR
    ...PLATE, MOUNTING - FUEL LEVEL SENSOR
  • 9
    1623-158 ...SCREW, PLASTITE
    ...SCREW, PLASTITE
  • 10
    0570-168 ...STRAP, MOUNTING - GAS TANK - FRONT
    ...STRAP, MOUNTING - GAS TANK - FRONT
  • 11
    0570-169 ...STRAP, MOUNTING - GAS TANK - REAR
    ...STRAP, MOUNTING - GAS TANK - REAR
  • 12
    8476-650 ...SCREW, MACHINE
    ...SCREW, MACHINE
  • 13
    8427-602 ...NUT, LOCK
    ...NUT, LOCK
  • 14
    0423-609 SCREW, MOUNTING - GAS TANK
    SCREW, MOUNTING - GAS TANK
  • 15
    0470-536 CLIP, MOUNTING - GAS TANK
    CLIP, MOUNTING - GAS TANK
  • 16
    0423-688 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 18
    0423-670 CLAMP, CARBURETOR
    CLAMP, CARBURETOR
  • 19
    0470-527 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 20
    0470-519 PUMP, FUEL
    PUMP, FUEL
  • 21
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 22
    0623-038 NUT, LOCK
    NUT, LOCK
  • 23
    0470-476 PAD, GAS TANK
    PAD, GAS TANK
  • 24
    0470-479 SHIELD, GAS TANK
    SHIELD, GAS TANK
  • 25
    0470-474 SHIELD, HEAT
    SHIELD, HEAT
  • 26
    0623-797 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
