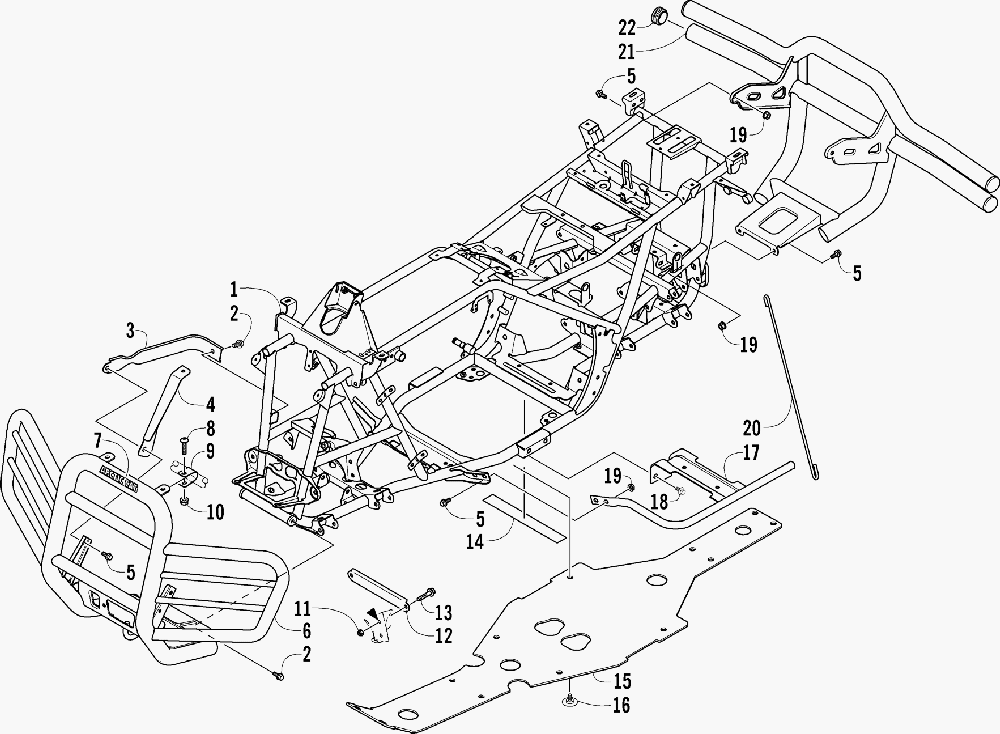

FRAME AND RELATED PARTS для Arctic Cat 650 H1 FIS LE (GREEN) [A2007IBS4BUSM] - 2007 года выпуска
-
№АртикулНазвание
-
12506-033 FRAME, MAINFRAME, MAIN
-
28409-020 SCREW, CAPSCREW, CAP
-
31506-596 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
30506-653 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
41506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
41506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
58408-816 SCREW, CAPSCREW, CAP
-
61506-398 BUMPER, FRONTBUMPER, FRONT
-
70411-501 DECAL, "ARCTIC CAT"DECAL, "ARCTIC CAT"
-
88468-845 SCREW, MACHINESCREW, MACHINE
-
91506-667 STRAP, BUMPER SUPPORTSTRAP, BUMPER SUPPORT
-
108424-805 NUT, LOCKNUT, LOCK
-
118428-002 NUT, LOCKNUT, LOCK
-
121506-429 BRACE, A-ARMBRACE, A-ARM
-
138409-025 SCREW, CAPSCREW, CAP
-
140406-289 PAD, FRAMEPAD, FRAME
-
152406-029 PANEL, BELLYPANEL, BELLY
-
160423-101 SCREW, BODYSCREW, BODY
-
171506-380 FOOTREST - RIGHTFOOTREST - RIGHT
-
171506-379 FOOTREST - LEFTFOOTREST - LEFT
-
188409-016 SCREW, CAPSCREW, CAP
-
198424-802 NUT, FLANGENUT, FLANGE
-
202406-147 ROD, SUPPORTROD, SUPPORT
-
211506-615 BUMPER, REAR (INC. 22)BUMPER, REAR (INC. 22)
-
220406-130 ...CAP, BUMPER...CAP, BUMPER
