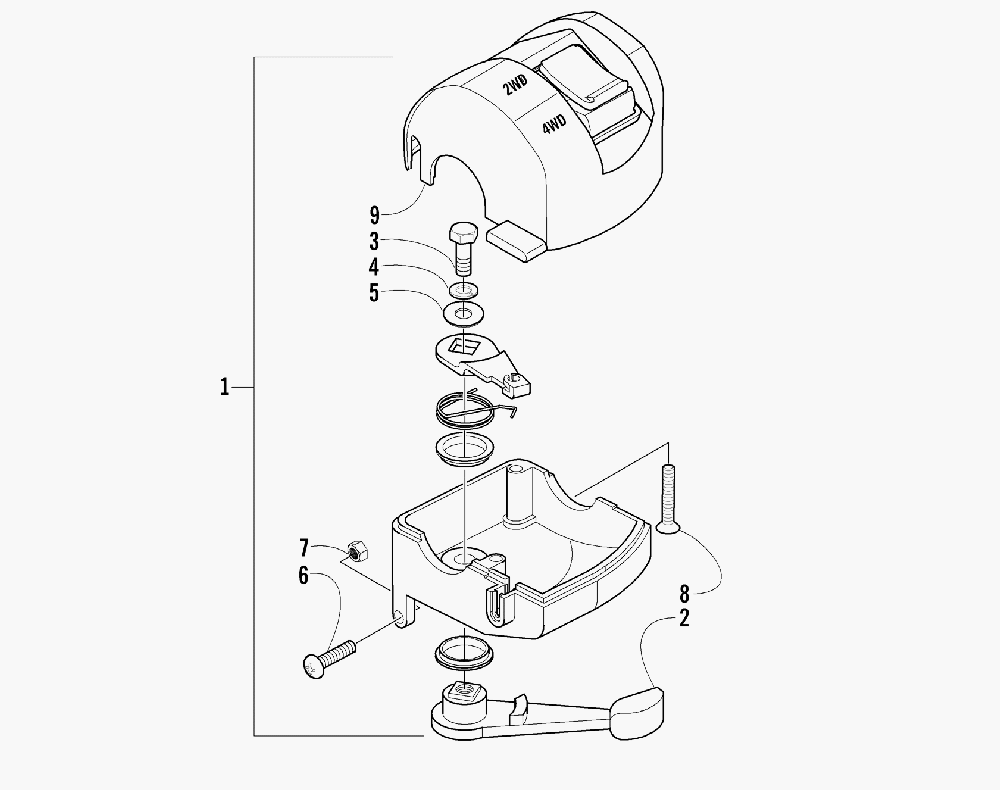

THROTTLE CASE ASSEMBLY для Arctic Cat 500 FIS MAN (GREEN) [A2007IBM4AUSG] - 2007 года выпуска

  • №
    Артикул
    Название
  • 1
    0509-012 CASE, THROTTLE - ASSEMBLY (INC. 2-9)
    CASE, THROTTLE - ASSEMBLY (INC. 2-9)
  • 2
    3409-001 ...LEVER
    ...LEVER
  • 3
    3004-533 ...SCREW, CAP (6X16)
    ...SCREW, CAP (6X16)
  • 4
    3004-447 ...WASHER, LOCK (6MM)
    ...WASHER, LOCK (6MM)
  • 5
    3003-030 ...WASHER, FLAT
    ...WASHER, FLAT
  • 6
    3423-014 ...SCREW (5MM)
    ...SCREW (5MM)
  • 7
    3423-327 ...NUT (5MM)
    ...NUT (5MM)
  • 8
    3423-199 ...SCREW (5X30)
    ...SCREW (5X30)
  • 9
    0409-048 ...COVER, THROTTLE CASE W/SWITCH
    ...COVER, THROTTLE CASE W/SWITCH
