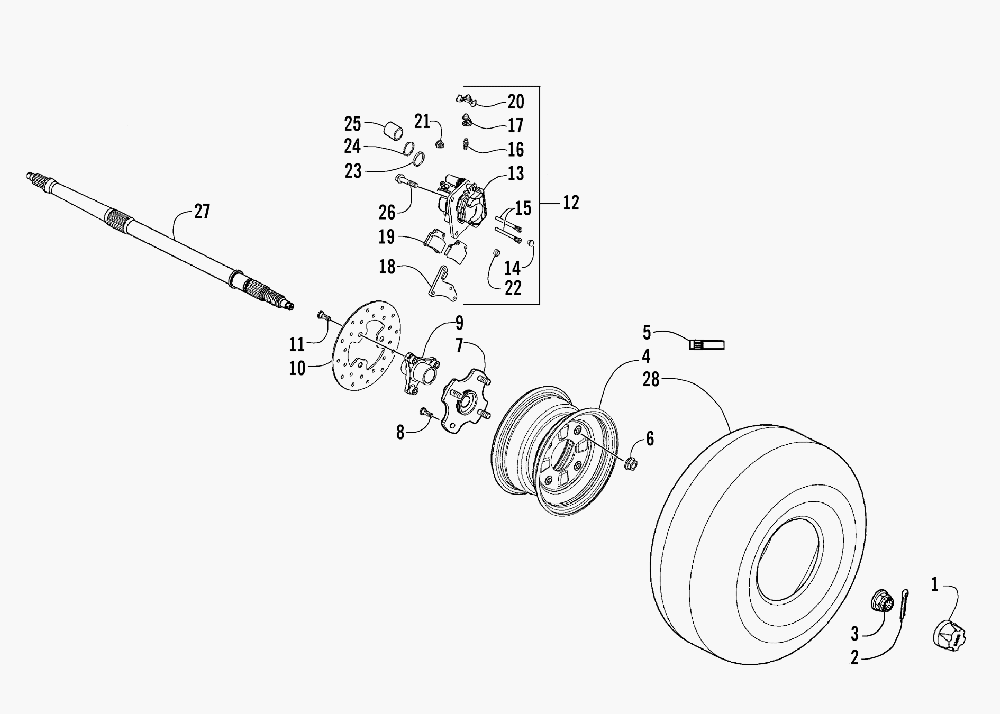

REAR WHEELS- AXLE- AND BRAKE ASSEMBLY для Arctic Cat 250 UTILITY (GREEN) [A2007KUE2BUSG] - 2007 года выпуска`
-
№АртикулНазвание
-
13303-931 CAP, WHEELCAP, WHEEL
-
23303-340 PIN, COTTERPIN, COTTER
-
33304-129 NUTNUT
-
43303-883 WHEEL, REARWHEEL, REAR
-
53304-562 VALVE, WHEELVALVE, WHEEL
-
63304-028 NUT, WHEELNUT, WHEEL
-
73304-296 HUB, WHEEL - REAR (INC. 8)HUB, WHEEL - REAR (INC. 8)
-
83304-014 ...BOLT, HUB...BOLT, HUB
-
93303-893 HUB, BRAKE DISCHUB, BRAKE DISC
-
103303-913 DISC, BRAKE - REARDISC, BRAKE - REAR
-
113304-015 BOLTBOLT
-
123303-888 CALIPER ASSEMBLY - FOOT BRAKE (INC. 13-25)CALIPER ASSEMBLY - FOOT BRAKE (INC. 13-25)
-
123303-892 CALIPER ASSEMBLY - HAND BRAKE (INC. 13-25)CALIPER ASSEMBLY - HAND BRAKE (INC. 13-25)
-
143304-334 ...PLUG...PLUG
-
153304-326 ...PIN...PIN
-
163304-330 ...BLEED VALVE...BLEED VALVE
-
173304-331 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
183303-911 ...BRACKET...BRACKET
-
193303-908 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
203304-315 ...SPRING, BRAKE PAD...SPRING, BRAKE PAD
-
213304-322 ...BOOT A...BOOT A
-
223304-329 ...BUSHING...BUSHING
-
233303-922 ...SEAL, PISTON - INNER - HAND BRAKE...SEAL, PISTON - INNER - HAND BRAKE
-
233305-380 ...SEAL, PISTON - INNER - FOOT BRAKE...SEAL, PISTON - INNER - FOOT BRAKE
-
243303-910 ...SEAL, DUST - OUTER - HAND BRAKE...SEAL, DUST - OUTER - HAND BRAKE
-
243305-377 ...SEAL, DUST - OUTER - FOOT BRAKE...SEAL, DUST - OUTER - FOOT BRAKE
-
253304-314 ...PISTON - FOOT BRAKE...PISTON - FOOT BRAKE
-
253303-909 ...PISTON - HAND BRAKE...PISTON - HAND BRAKE
-
263304-565 SCREW, CAPSCREW, CAP
-
273303-882 AXLE, WHEEL - REARAXLE, WHEEL - REAR
-
283303-885 TIRE, REARTIRE, REAR
