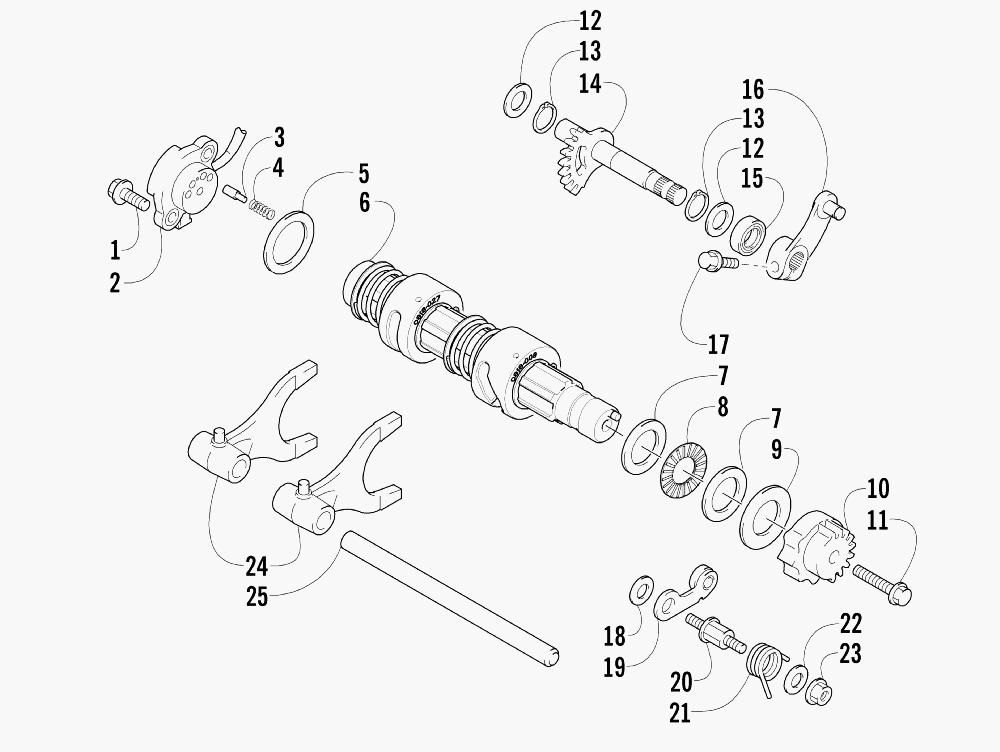

GEAR SHIFTING ASSEMBLY для Arctic Cat PROWLER XT (ARCTIC CAT GREEN) [U2006P2S4BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    8470-520 SCREW, MACHINE
    SCREW, MACHINE
  • 2
    0818-049 BASE, GEAR SHIFT - ASSEMBLY
    BASE, GEAR SHIFT - ASSEMBLY
  • 3
    0818-013 CONTACT
    CONTACT
  • 4
    0818-017 SPRING
    SPRING
  • 5
    0828-040 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 6
    0818-046 SHAFT, GEAR SHIFT - ASSEMBLY
    SHAFT, GEAR SHIFT - ASSEMBLY
  • 7
    0828-067 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 8
    0832-034 BEARING
    BEARING
  • 9
    0828-037 WASHER, GEAR SHIFT CAM PLATE
    WASHER, GEAR SHIFT CAM PLATE
  • 10
    0818-005 PLATE, GEAR SHIFT CAM
    PLATE, GEAR SHIFT CAM
  • 11
    0826-006 BOLT, GEAR SHIFT CAM PLATE
    BOLT, GEAR SHIFT CAM PLATE
  • 12
    0828-036 WASHER, SUB-GEAR SHIFT SHAFT
    WASHER, SUB-GEAR SHIFT SHAFT
  • 13
    0831-010 CIRCLIP, SUB-GEAR SHIFT SHAFT
    CIRCLIP, SUB-GEAR SHIFT SHAFT
  • 14
    0818-007 SHAFT, SUB-GEAR SHIFT
    SHAFT, SUB-GEAR SHIFT
  • 15
    0830-044 SEAL, SUB-GEAR SHIFT SHAFT
    SEAL, SUB-GEAR SHIFT SHAFT
  • 16
    0818-014 ARM, SELECT
    ARM, SELECT
  • 17
    8468-620 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0828-038 WASHER, CAM STOPPER
    WASHER, CAM STOPPER
  • 19
    0818-002 STOPPER, CAM
    STOPPER, CAM
  • 20
    0818-004 SUPPORT, CAM STOPPER
    SUPPORT, CAM STOPPER
  • 21
    0818-028 SPRING, CAM STOPPER
    SPRING, CAM STOPPER
  • 22
    0828-035 WASHER, CAM STOPPER SPRING
    WASHER, CAM STOPPER SPRING
  • 23
    8424-602 NUT, CAM STOPPER SPRING
    NUT, CAM STOPPER SPRING
  • 24
    0818-045 FORK, SHIFT
    FORK, SHIFT
  • 25
    0818-006 SHAFT, SHIFT FORK
    SHAFT, SHIFT FORK
