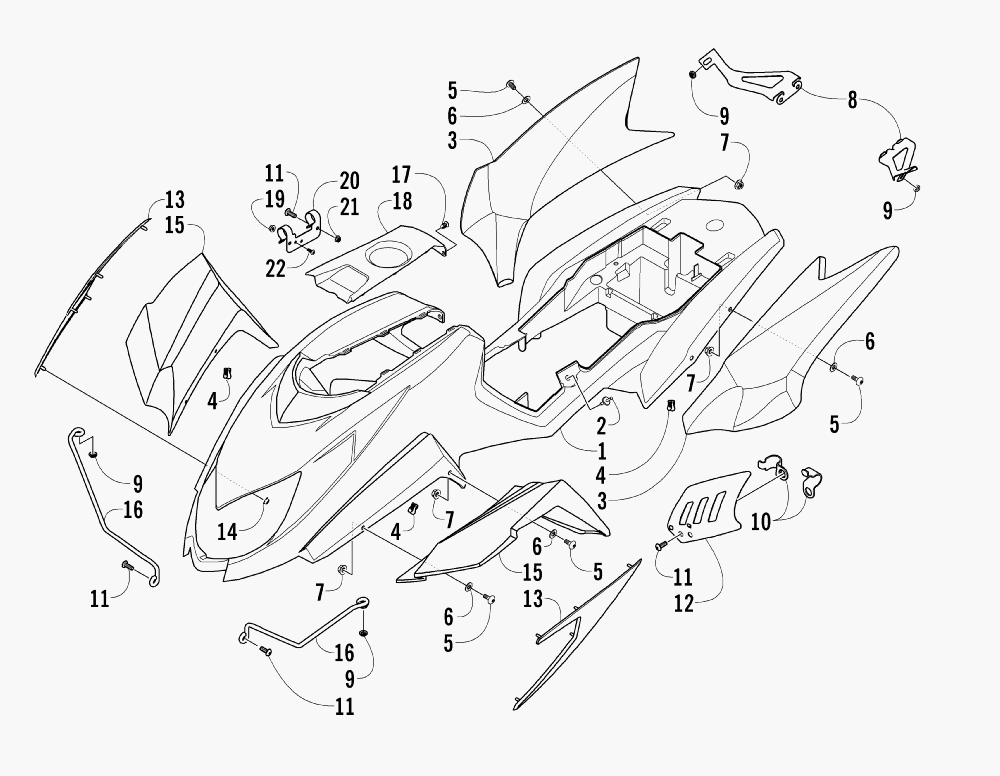

BODY PANEL ASSEMBLY для Arctic Cat DVX 400 (RED) [A2006DVI2AUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    1406-445 PANEL, BODY - RED (RED)
    PANEL, BODY - RED (RED)
  • 1
    1406-486 PANEL, BODY - BLACK (FOR BLACK-RED) ( FOR BLACK-CAT GREEN)
    PANEL, BODY - BLACK (FOR BLACK-RED) ( FOR BLACK-CAT GREEN)
  • 2
    0423-494 RIVET, REINSTALLABLE
    RIVET, REINSTALLABLE
  • 3
    1406-451 FENDER, REAR - RIGHT - RED (FOR RED) (FOR BLACK-RED)
    FENDER, REAR - RIGHT - RED (FOR RED) (FOR BLACK-RED)
  • 3
    1406-452 FENDER, REAR - LEFT - RED (FOR RED) (FOR BLACK-RED)
    FENDER, REAR - LEFT - RED (FOR RED) (FOR BLACK-RED)
  • 3
    1406-494 FENDER, REAR - RIGHT - CAT GREEN ( FOR BLACK-CAT GREEN)
    FENDER, REAR - RIGHT - CAT GREEN ( FOR BLACK-CAT GREEN)
  • 3
    1406-495 FENDER, REAR - LEFT - CAT GREEN( FOR BLACK-CAT GREEN)
    FENDER, REAR - LEFT - CAT GREEN( FOR BLACK-CAT GREEN)
  • 4
    0423-459 CLIP, MOUNTING
    CLIP, MOUNTING
  • 5
    8476-616 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    8050-212 WASHER
    WASHER
  • 7
    0624-250 NUT, LOCK
    NUT, LOCK
  • 8
    1506-306 BRACKET, MOUNTING - REAR FENDER - RIGHT
    BRACKET, MOUNTING - REAR FENDER - RIGHT
  • 8
    1506-305 BRACKET, MOUNTING - REAR FENDER - LEFT
    BRACKET, MOUNTING - REAR FENDER - LEFT
  • 9
    0423-357 NUT, STAMPED
    NUT, STAMPED
  • 10
    1506-410 CLAMP, FOOT GUARD
    CLAMP, FOOT GUARD
  • 11
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    1506-411 GUARD, FOOT - RIGHT
    GUARD, FOOT - RIGHT
  • 12
    1506-412 GUARD, FOOT - LEFT
    GUARD, FOOT - LEFT
  • 13
    1406-447 PANEL, TRIM - RIGHT - BLACK (FOR RED)
    PANEL, TRIM - RIGHT - BLACK (FOR RED)
  • 13
    1406-448 PANEL, TRIM - LEFT - BLACK (FOR RED)
    PANEL, TRIM - LEFT - BLACK (FOR RED)
  • 13
    1406-488 PANEL, TRIM - RIGHT - RED (FOR BLACK-RED)
    PANEL, TRIM - RIGHT - RED (FOR BLACK-RED)
  • 13
    1406-489 PANEL, TRIM - LEFT - RED (FOR BLACK-RED)
    PANEL, TRIM - LEFT - RED (FOR BLACK-RED)
  • 13
    1406-490 PANEL, TRIM - RIGHT - CAT GREEN FOR (BLACK-CAT GREEN)
    PANEL, TRIM - RIGHT - CAT GREEN FOR (BLACK-CAT GREEN)
  • 13
    1406-491 PANEL, TRIM - LEFT - CAT GREEN (FOR BLACK-CAT GREEN)
    PANEL, TRIM - LEFT - CAT GREEN (FOR BLACK-CAT GREEN)
  • 14
    0423-489 NUT, STAMPED
    NUT, STAMPED
  • 15
    1406-449 FENDER, FRONT - RIGHT - RED (FOR RED) (FOR BLACK-RED)
    FENDER, FRONT - RIGHT - RED (FOR RED) (FOR BLACK-RED)
  • 15
    1406-450 FENDER, FRONT - LEFT - RED (FOR RED) (FOR BLACK-RED)
    FENDER, FRONT - LEFT - RED (FOR RED) (FOR BLACK-RED)
  • 15
    1406-492 FENDER, FRONT - RIGHT - CAT GREEN (FOR BLACK-CAT GREEN)
    FENDER, FRONT - RIGHT - CAT GREEN (FOR BLACK-CAT GREEN)
  • 15
    1406-493 FENDER, FRONT - LEFT - CAT GREEN (FOR BLACK-CAT GREEN)
    FENDER, FRONT - LEFT - CAT GREEN (FOR BLACK-CAT GREEN)
  • 16
    1506-301 BRACKET, MOUNTING - FRONT FENDER - RIGHT
    BRACKET, MOUNTING - FRONT FENDER - RIGHT
  • 16
    1506-302 BRACKET, MOUNTING - FRONT FENDER - LEFT
    BRACKET, MOUNTING - FRONT FENDER - LEFT
  • 17
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 18
    1406-446 COVER, TANK - RED (FOR RED)
    COVER, TANK - RED (FOR RED)
  • 18
    1406-487 COVER, TANK - BLACK (BLACK-RED/BLACK-CAT GREEN)
    COVER, TANK - BLACK (BLACK-RED/BLACK-CAT GREEN)
  • 19
    8424-502 NUT, LOCK
    NUT, LOCK
  • 20
    1506-413 BRACKET, MOUNTING - REVERSE SWITCH
    BRACKET, MOUNTING - REVERSE SWITCH
  • 21
    8424-602 NUT, LOCK
    NUT, LOCK
  • 22
    0423-068 SCREW, MACHINE
    SCREW, MACHINE
