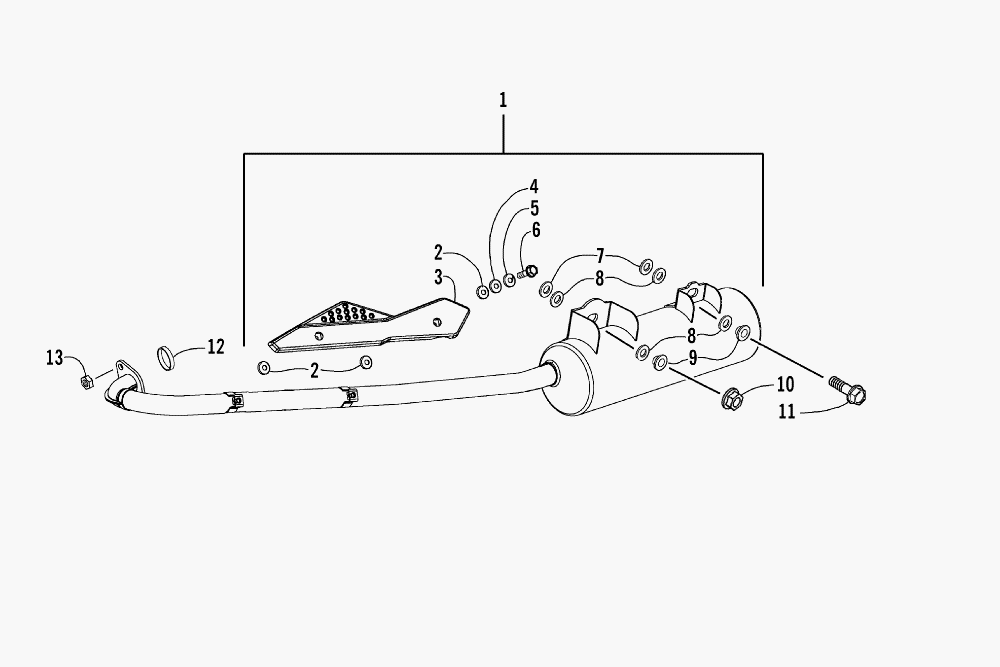

EXHAUST ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2006KSE2BUSD] - 2006 года выпуска`
-
№АртикулНазвание
-
13304-457 MUFFLER ASSEMBLY (INC. 2-9)MUFFLER ASSEMBLY (INC. 2-9)
-
23303-727 ...PACKING, EXHAUST SHIELD...PACKING, EXHAUST SHIELD
-
33304-251 ...SHIELD, EXHAUST...SHIELD, EXHAUST
-
43304-134 ...WASHER...WASHER
-
53304-140 ...WASHER, SPRING...WASHER, SPRING
-
63304-686 ...BOLT, FLANGE...BOLT, FLANGE
-
73303-726 ...BUSHING, RUBBER...BUSHING, RUBBER
-
83303-728 ...PACKING, MUFFLER ASSEMBLY...PACKING, MUFFLER ASSEMBLY
-
93303-731 ...COLLAR, MUFFLER ASSEMBLY...COLLAR, MUFFLER ASSEMBLY
-
103303-332 NUT, FLANGENUT, FLANGE
-
113304-175 BOLT, FLANGEBOLT, FLANGE
-
123303-725 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
133304-125 NUT, HEXNUT, HEX
