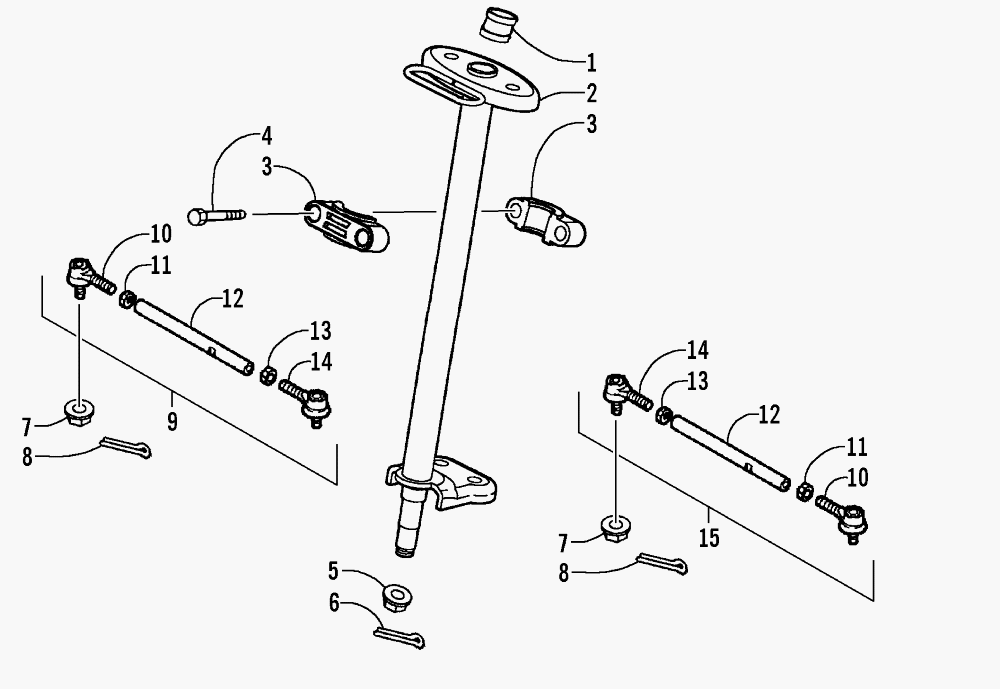

STEERING POST ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (ARCTIC CAT GREEN) [A2006KSB2BUSZ] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    3303-214 SLEEVE, STEERING POST
    SLEEVE, STEERING POST
  • 2
    3303-572 POST, STEERING
    POST, STEERING
  • 3
    3303-213 HOLDER, STEERING POST
    HOLDER, STEERING POST
  • 4
    3303-372 BOLT, FLANGE
    BOLT, FLANGE
  • 5
    3304-032 NUT
    NUT
  • 6
    3303-470 PIN, COTTER
    PIN, COTTER
  • 7
    3303-266 NUT, FLANGE
    NUT, FLANGE
  • 8
    3303-621 PIN, COTTER
    PIN, COTTER
  • 9
    3303-448 TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - RIGHT (INC. ONE NO. 10-14)
  • 10
    3303-223 ...BALL JOINT, TIE ROD - RIGHT
    ...BALL JOINT, TIE ROD - RIGHT
  • 11
    3303-327 ...NUT, HEX
    ...NUT, HEX
  • 12
    3303-222 ...TIE ROD
    ...TIE ROD
  • 13
    3303-326 ...NUT, HEX
    ...NUT, HEX
  • 14
    3303-224 ...BALL JOINT, TIE ROD - LEFT
    ...BALL JOINT, TIE ROD - LEFT
  • 15
    3303-449 TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
    TIE ROD ASSEMBLY - LEFT (INC. ONE NO. 10-14)
