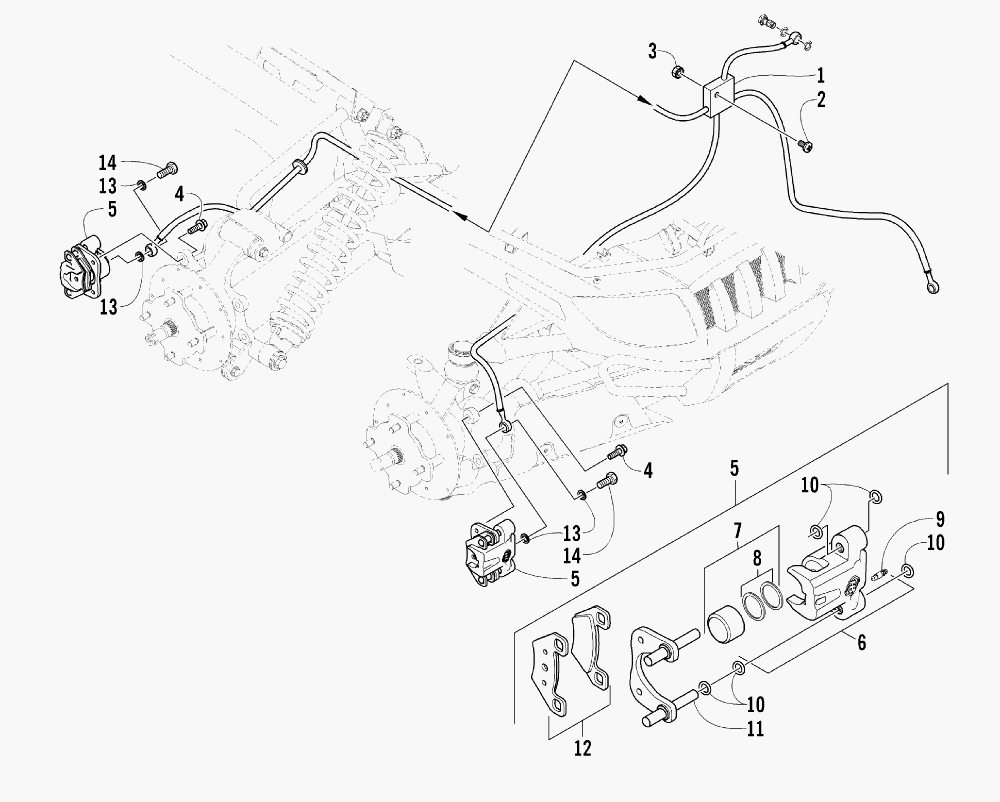

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 650 V-TWIN FIS AUTO (TONY STEWART EDITION) (CA) [A2006IBR4BCAX] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0502-627 HOSE, BRAKE - ASSEMBLY
    HOSE, BRAKE - ASSEMBLY
  • 2
    8476-625 SCREW, CAP
    SCREW, CAP
  • 3
    0623-038 NUT
    NUT
  • 4
    8408-820 SCREW, CAP
    SCREW, CAP
  • 5
    0502-602 CALIPER, BRAKE - RIGHT FRONT (INC. 6-12)
    CALIPER, BRAKE - RIGHT FRONT (INC. 6-12)
  • 5
    0502-610 CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 6-12)
    CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 6-12)
  • 6
    0502-603 ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 7-9)
    ...HOUSING, CALIPER - ASSEMBLY - RIGHT FRONT (INC. 7-9)
  • 6
    0502-611 ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT AND RIGHT REAR (INC. 7-9)
    ...HOUSING, CALIPER - ASSEMBLY - LEFT FRONT AND RIGHT REAR (INC. 7-9)
  • 7
    0502-606 ......PISTON/SEAL SET (INC. 8)
    ......PISTON/SEAL SET (INC. 8)
  • 8
    0502-607 .........SEAL SET
    .........SEAL SET
  • 9
    0502-609 ......VALVE, BLEED
    ......VALVE, BLEED
  • 10
    0502-608 ...O-RING, GUIDE - SET
    ...O-RING, GUIDE - SET
  • 11
    0502-605 ...BRACKET ASSEMBLY
    ...BRACKET ASSEMBLY
  • 12
    0502-604 ...PAD, BRAKE - SET
    ...PAD, BRAKE - SET
  • 13
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 14
    0423-413 BOLT, BANJO FITTING
    BOLT, BANJO FITTING
