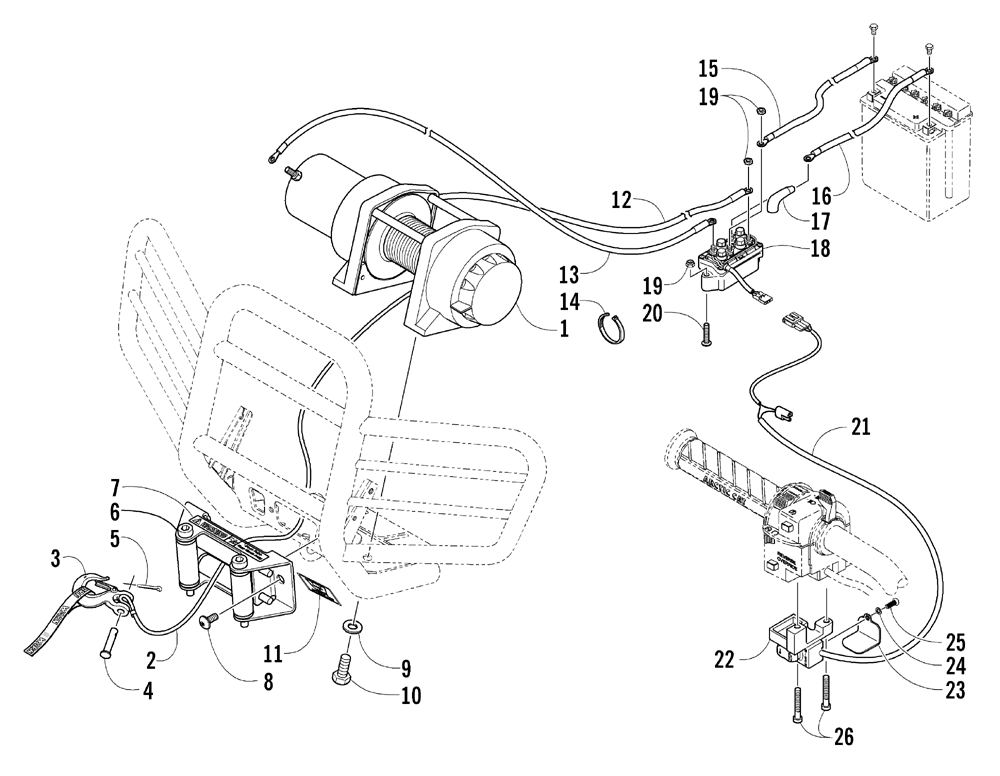

WINCH ASSEMBLY для Arctic Cat 650 V-TWIN FIS AUTO (TONY STEWART EDITION) [A2006IBR4BUSX] - 2006 года выпуска
-
№АртикулНазвание
-
10441-490 WINCH (INC. 2-5)WINCH (INC. 2-5)
-
20441-061 ...CABLE, WINCH...CABLE, WINCH
-
31441-131 ...HOOK, WINCH...HOOK, WINCH
-
60441-403 ROLLER, WINCH (INC. 7)ROLLER, WINCH (INC. 7)
-
70411-474 ...DECAL, WARNING - ROLLER...DECAL, WARNING - ROLLER
-
88468-820 SCREW, MACHINESCREW, MACHINE
-
98051-246 WASHER, LOCKWASHER, LOCK
-
101623-131 SCREW, CAPSCREW, CAP
-
110411-433 DECAL, WINCHDECAL, WINCH
-
121441-111 CABLE, WINCH/SOLENOID - YELLOWCABLE, WINCH/SOLENOID - YELLOW
-
131441-110 CABLE, WINCH/SOLENOID - BLUECABLE, WINCH/SOLENOID - BLUE
-
140123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
151441-112 CABLE, SOLENOID/BATTERY - BLACKCABLE, SOLENOID/BATTERY - BLACK
-
161441-113 CABLE, SOLENOID/BATTERY - REDCABLE, SOLENOID/BATTERY - RED
-
170441-060 BOOT, TERMINALBOOT, TERMINAL
-
180409-066 SOLENOIDSOLENOID
-
190623-038 NUT W/WASHERNUT W/WASHER
-
208476-625 SCREW, MACHINESCREW, MACHINE
-
210409-065 SWITCH, CONTROLSWITCH, CONTROL
-
220409-034 HOLDER, CONTROL SWITCHHOLDER, CONTROL SWITCH
-
230409-075 COVER, SWITCHCOVER, SWITCH
-
248051-212 WASHERWASHER
-
250423-382 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
268464-560 SCREW, MACHINESCREW, MACHINE
