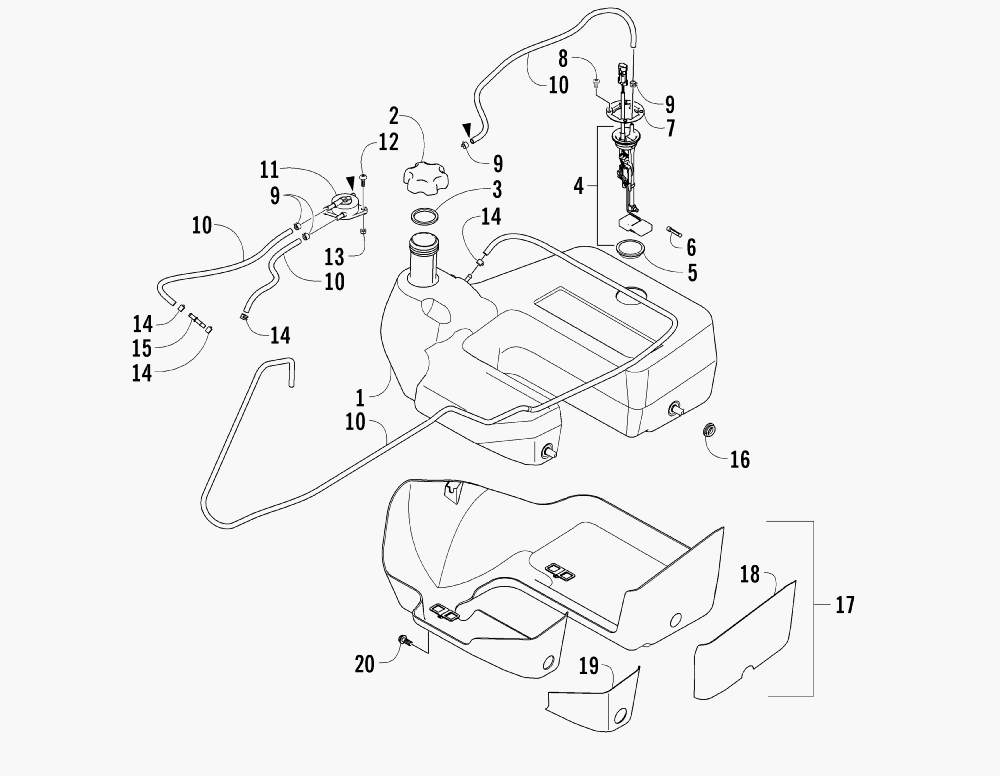

GAS TANK ASSEMBLY для Arctic Cat 500 FIS MAN (RED) [A2006IBM4AUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-102 TANK, GAS - ASSEMBLY (INC. 2-8)
    TANK, GAS - ASSEMBLY (INC. 2-8)
  • 2
    0470-438 ...CAP, GAS TANK (INC. 3)
    ...CAP, GAS TANK (INC. 3)
  • 3
    0109-733 ......GASKET, TANK CAP
    ......GASKET, TANK CAP
  • 4
    0570-112 ...SENSOR, FUEL LEVEL (INC. 5-6)
    ...SENSOR, FUEL LEVEL (INC. 5-6)
  • 5
    0470-521 ......SEAL, FUEL LEVEL SENSOR
    ......SEAL, FUEL LEVEL SENSOR
  • 6
    0470-475 ......FILTER, FUEL
    ......FILTER, FUEL
  • 7
    0470-546 ...PLATE, MOUNTING - FUEL LEVEL SENSOR
    ...PLATE, MOUNTING - FUEL LEVEL SENSOR
  • 8
    1623-158 ...SCREW, SELF-TAPPING
    ...SCREW, SELF-TAPPING
  • 9
    0423-461 CLAMP, HOSE
    CLAMP, HOSE
  • 10
    0410-070 HOSE, GASLINE - 25 FT
    HOSE, GASLINE - 25 FT
  • 11
    0470-519 PUMP, FUEL
    PUMP, FUEL
  • 12
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0623-038 NUT, LOCK
    NUT, LOCK
  • 14
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    0470-527 FITTING, STRAIGHT
    FITTING, STRAIGHT
  • 16
    0423-460 GROMMET
    GROMMET
  • 17
    0570-081 SHIELD, GAS TANK - ASSEMBLY (INC. 18-19)
    SHIELD, GAS TANK - ASSEMBLY (INC. 18-19)
  • 18
    0470-499 ...SHIELD, HEAT
    ...SHIELD, HEAT
  • 19
    0470-498 ...SHIELD, HEAT
    ...SHIELD, HEAT
  • 20
    8408-816 SCREW, CAP
    SCREW, CAP
