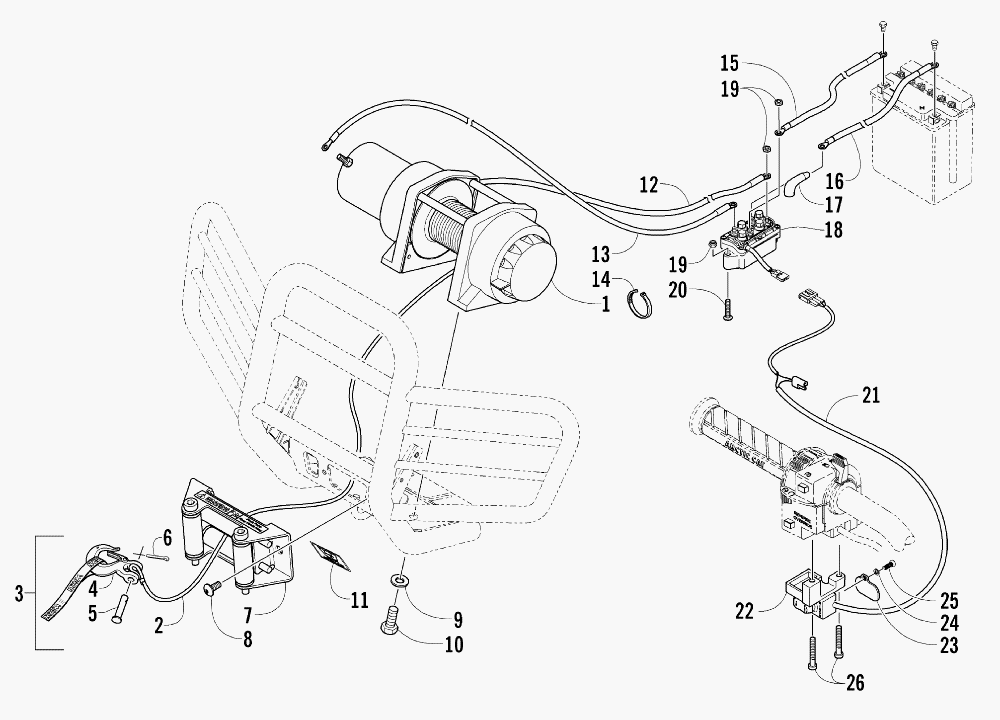

0741-305 для Arctic Cat 500 FIS AUTO LE (RED) [A2006IBM4BUSN] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0441-490 WINCH (INC. 2)
    WINCH (INC. 2)
  • 2
    0441-061 ...CABLE, WINCH
    ...CABLE, WINCH
  • 3
    0441-426 HOOK, WINCH W/STRAP - ASSEMBLY (INC 4-6)
    HOOK, WINCH W/STRAP - ASSEMBLY (INC 4-6)
  • 4
    1441-131 ...HOOK, WINCH W/STRAP
    ...HOOK, WINCH W/STRAP
  • 5
    1441-130 ...PIN
    ...PIN
  • 6
    1441-129 ...COTTER PIN
    ...COTTER PIN
  • 7
    0441-403 ROLLER, WINCH
    ROLLER, WINCH
  • 8
    8468-820 SCREW, MACHINE
    SCREW, MACHINE
  • 9
    8051-246 WASHER, LOCK
    WASHER, LOCK
  • 10
    1623-131 SCREW, CAP
    SCREW, CAP
  • 11
    0411-433 DECAL, WINCH
    DECAL, WINCH
  • 12
    1441-111 CABLE, WINCH/SOLENOID - YELLOW
    CABLE, WINCH/SOLENOID - YELLOW
  • 13
    1441-110 CABLE, WINCH/SOLENOID - BLUE
    CABLE, WINCH/SOLENOID - BLUE
  • 14
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
  • 15
    1441-112 CABLE, SOLENOID/BATTERY - BLACK
    CABLE, SOLENOID/BATTERY - BLACK
  • 16
    1441-113 CABLE, SOLENOID/BATTERY - RED
    CABLE, SOLENOID/BATTERY - RED
  • 17
    0441-060 BOOT, TERMINAL
    BOOT, TERMINAL
  • 18
    0409-066 SOLENOID
    SOLENOID
  • 19
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 20
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    0409-065 SWITCH, CONTROL
    SWITCH, CONTROL
  • 22
    0409-034 HOLDER, CONTROL SWITCH
    HOLDER, CONTROL SWITCH
  • 23
    0409-075 COVER, SWITCH
    COVER, SWITCH
  • 24
    8051-212 WASHER
    WASHER
  • 25
    0423-382 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 26
    8464-560 SCREW, MACHINE
    SCREW, MACHINE
