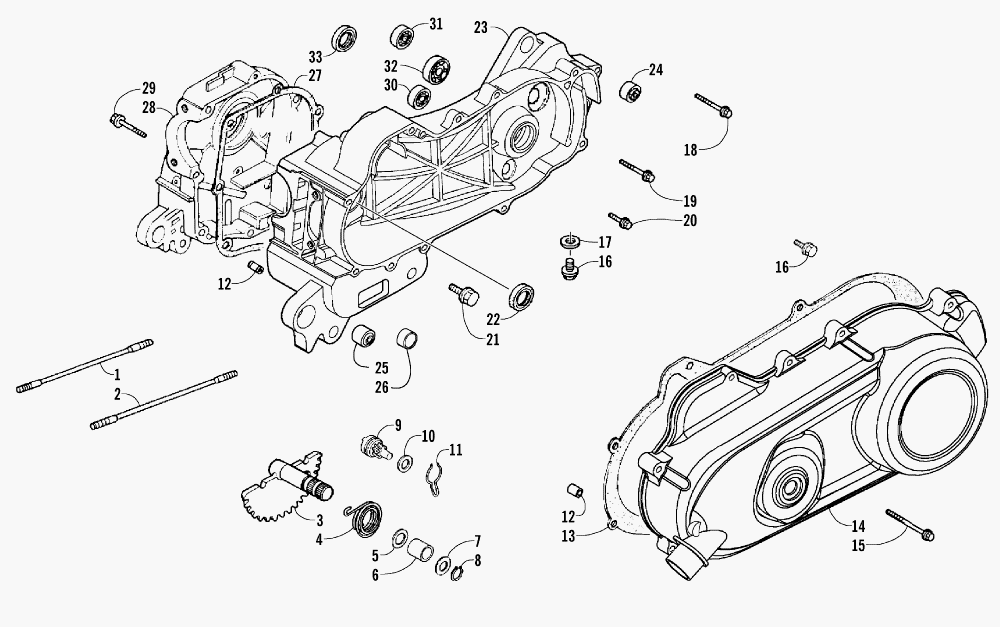

CRANKCASE ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (GREEN) [A2006KUA2BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
13303-579 BOLT, STUDBOLT, STUD
-
23303-580 BOLT, STUDBOLT, STUD
-
33303-119 SPINDLE, KICK STARTERSPINDLE, KICK STARTER
-
43303-122 SPRING, RETURN - KICK STARTERSPRING, RETURN - KICK STARTER
-
53303-121 COLLAR, BOSS - KICK STARTERCOLLAR, BOSS - KICK STARTER
-
63303-120 BUSHING, SPINDLE - KICK STARTERBUSHING, SPINDLE - KICK STARTER
-
73303-276 WASHER, SPINDLE - KICK STARTERWASHER, SPINDLE - KICK STARTER
-
83303-345 CIRCLIPCIRCLIP
-
93303-548 GEAR, DRIVEN - KICK STARTERGEAR, DRIVEN - KICK STARTER
-
103303-272 WASHER, THRUSTWASHER, THRUST
-
113303-117 SPRING, DRIVEN - KICK STARTERSPRING, DRIVEN - KICK STARTER
-
123303-341 PIN, DOWELPIN, DOWEL
-
133303-482 GASKET, CRANKCASE COVER - LEFTGASKET, CRANKCASE COVER - LEFT
-
143303-476 COVER, CRANKCASE - LEFTCOVER, CRANKCASE - LEFT
-
153303-386 BOLT, FLANGEBOLT, FLANGE
-
163303-365 BOLT, FLANGEBOLT, FLANGE
-
173303-591 WASHERWASHER
-
183303-615 BOLT, FLANGEBOLT, FLANGE
-
193303-616 BOLT, FLANGEBOLT, FLANGE
-
203303-381 BOLT, FLANGEBOLT, FLANGE
-
213303-283 BOLT, DRAIN PLUG - ASSEMBLYBOLT, DRAIN PLUG - ASSEMBLY
-
223303-296 SEAL, OILSEAL, OIL
-
233303-473 CRANKCASE, SET - LEFT (INC. 24-26)CRANKCASE, SET - LEFT (INC. 24-26)
-
243303-403 ...BUSHING, RUBBER - REAR CUSHION...BUSHING, RUBBER - REAR CUSHION
-
253303-402 ...BUSHING, RUBBER - ENGINE HANGER...BUSHING, RUBBER - ENGINE HANGER
-
263303-597 ...BUSHING...BUSHING
-
273303-472 GASKET, CRANKCASE - RIGHTGASKET, CRANKCASE - RIGHT
-
283303-471 CRANKCASE, SET - RIGHTCRANKCASE, SET - RIGHT
-
293303-387 BOLT, FLANGEBOLT, FLANGE
-
303303-596 BEARING, BALLBEARING, BALL
-
313303-597 BEARING, BALLBEARING, BALL
-
323303-464 BEARING, BALLBEARING, BALL
-
333303-600 SEAL, OILSEAL, OIL
