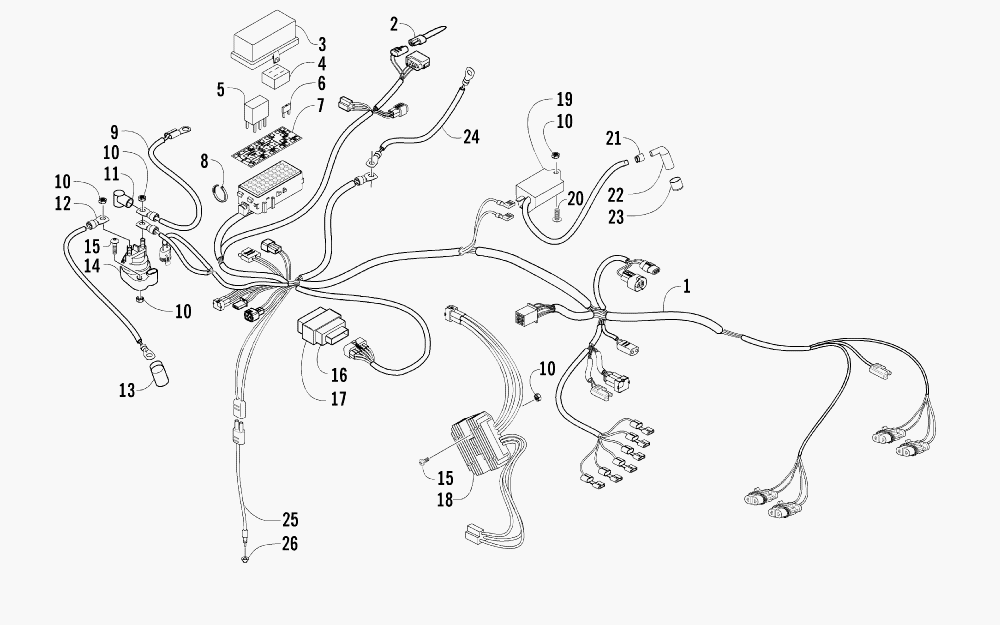

WIRING HARNESS ASSEMBLY для Arctic Cat 400 4 X 4 VP MAN (RED) [A2006ABH4AUSR] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0486-181 HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)
    HARNESS, MAIN (INC. 2-7 AND TWO NO. 8)
  • 2
    0486-164 ...TETHER, ACCESSORY CONNECTOR
    ...TETHER, ACCESSORY CONNECTOR
  • 3
    0530-008 ...COVER, FUSE BLOCK
    ...COVER, FUSE BLOCK
  • 4
    0430-037 ...HOLDER, FUSE
    ...HOLDER, FUSE
  • 5
    0430-033 ...RELAY
    ...RELAY
  • 6
    0430-032 ...FUSE - 10 AMP
    ...FUSE - 10 AMP
  • 6
    0430-031 ...FUSE - 15 AMP
    ...FUSE - 15 AMP
  • 6
    0430-030 ...FUSE - 30 AMP
    ...FUSE - 30 AMP
  • 7
    0411-838 ...DECAL, FUSE BLOCK
    ...DECAL, FUSE BLOCK
  • 8
    0123-788 ...CABLE TIE - 7.5 IN.
    ...CABLE TIE - 7.5 IN.
  • 9
    0445-053 CABLE, ELECTRIC START RELAY/STARTER
    CABLE, ELECTRIC START RELAY/STARTER
  • 10
    0623-038 NUT W/WASHER
    NUT W/WASHER
  • 11
    0645-327 BOOT, TERMINAL
    BOOT, TERMINAL
  • 12
    0445-052 CABLE, BATTERY/ELECTRIC START RELAY
    CABLE, BATTERY/ELECTRIC START RELAY
  • 13
    0645-019 BOOT, TERMINAL
    BOOT, TERMINAL
  • 14
    0445-036 SOLENOID
    SOLENOID
  • 15
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    3402-785 CDI UNIT
    CDI UNIT
  • 17
    3402-684 CUSHION, CDI
    CUSHION, CDI
  • 18
    3402-682 REGULATOR, VOLTAGE
    REGULATOR, VOLTAGE
  • 19
    3430-055 COIL, IGNITION - ASSEMBLY
    COIL, IGNITION - ASSEMBLY
  • 20
    8476-620 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    3430-009 SEAL, HIGH TENSION WIRE
    SEAL, HIGH TENSION WIRE
  • 22
    3430-007 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 23
    3430-008 SEAL, SPARK PLUG
    SEAL, SPARK PLUG
  • 24
    0445-054 CABLE, BATTERY/GROUND
    CABLE, BATTERY/GROUND
  • 25
    0409-009 SWITCH, BRAKE - ASSEMBLY
    SWITCH, BRAKE - ASSEMBLY
  • 26
    0402-991 RETAINER, BRAKE SWITCH
    RETAINER, BRAKE SWITCH
