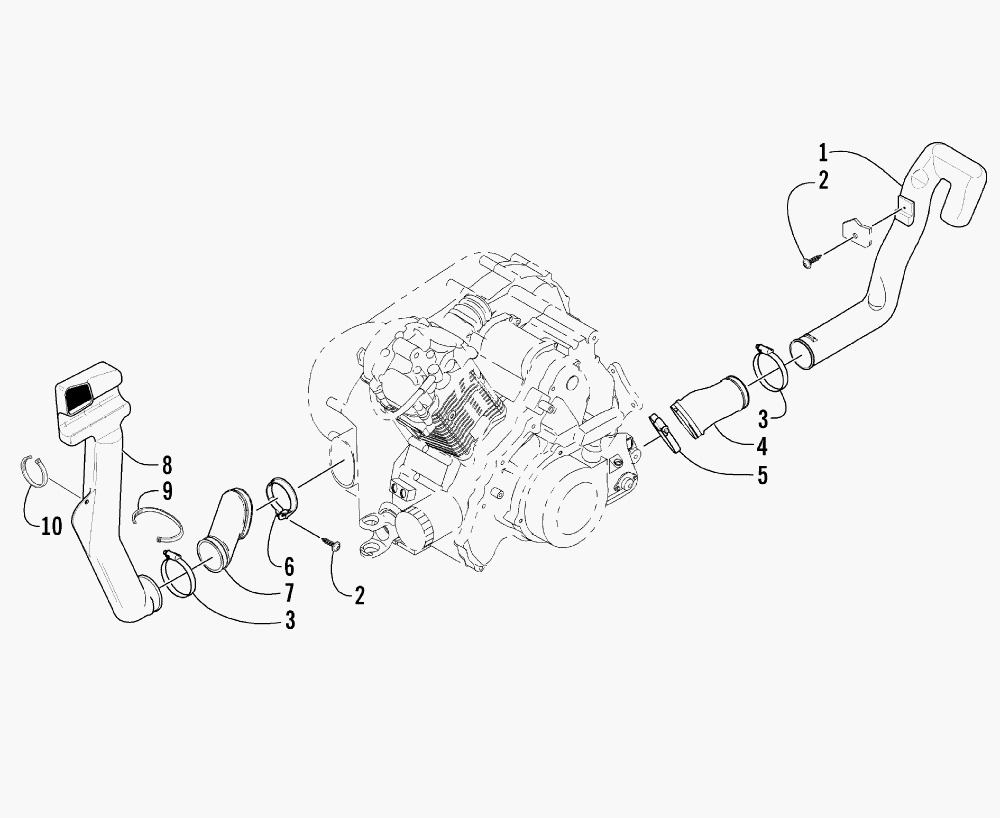

CASE/BELT COOLING ASSEMBLY для Arctic Cat 400 4 X 4 VP AUTO (GREEN) [A2006ABH4BUSG] - 2006 года выпуска

  • №
    Артикул
    Название
  • 1
    0413-107 DUCT, BELT COOLING - REAR
    DUCT, BELT COOLING - REAR
  • 2
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 3
    3402-449 CLAMP, BOOT
    CLAMP, BOOT
  • 4
    0413-060 BOOT, DUCT - REAR
    BOOT, DUCT - REAR
  • 5
    0423-380 CLAMP, DUCT
    CLAMP, DUCT
  • 6
    0423-551 CLAMP, BOOT
    CLAMP, BOOT
  • 7
    0413-048 BOOT, DUCT - FRONT
    BOOT, DUCT - FRONT
  • 8
    0413-042 DUCT, BELT COOLING - FRONT
    DUCT, BELT COOLING - FRONT
  • 9
    0123-903 CABLE TIE - 11.5 IN.
    CABLE TIE - 11.5 IN.
  • 10
    0123-788 CABLE TIE - 7.5 IN.
    CABLE TIE - 7.5 IN.
