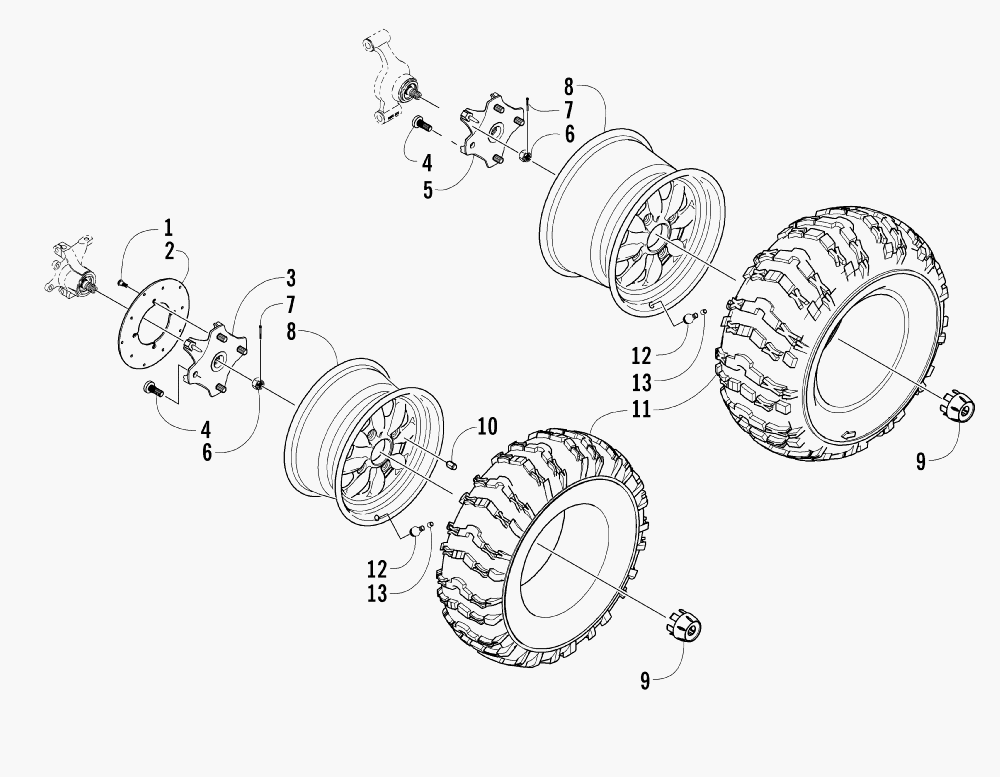

WHEEL AND TIRE ASSEMBLY для Arctic Cat 650 V-TWIN FIS AUTO LE (GREEN) [A2005IBR4BUSM] - 2005 года выпуска
-
№АртикулНазвание
-
10423-029 SCREW, MACHINESCREW, MACHINE
-
21402-225 DISC, BRAKEDISC, BRAKE
-
30502-599 HUB, WHEEL - FRONT (INC. 4)HUB, WHEEL - FRONT (INC. 4)
-
40402-974 ...STUD, WHEEL HUB...STUD, WHEEL HUB
-
50502-601 HUB, WHEEL - REAR - LEFT (INC. 4)HUB, WHEEL - REAR - LEFT (INC. 4)
-
50502-599 HUB, WHEEL - REAR - RIGHT (INC. 4)HUB, WHEEL - REAR - RIGHT (INC. 4)
-
60423-394 NUT, CASTLENUT, CASTLE
-
70423-407 PIN, COTTERPIN, COTTER
-
81402-286 WHEEL - FRONT - SPOKEDWHEEL - FRONT - SPOKED
-
81402-287 WHEEL - REAR - SPOKEDWHEEL - REAR - SPOKED
-
91402-325 ...CAP, WHEEL...CAP, WHEEL
-
100423-556 NUT, MOUNTING - WHEELNUT, MOUNTING - WHEEL
-
111402-202 TIRETIRE
-
120402-064 STEM, VALVE (INC. 13)STEM, VALVE (INC. 13)
-
130402-140 ...CAP, VALVE STEM...CAP, VALVE STEM
