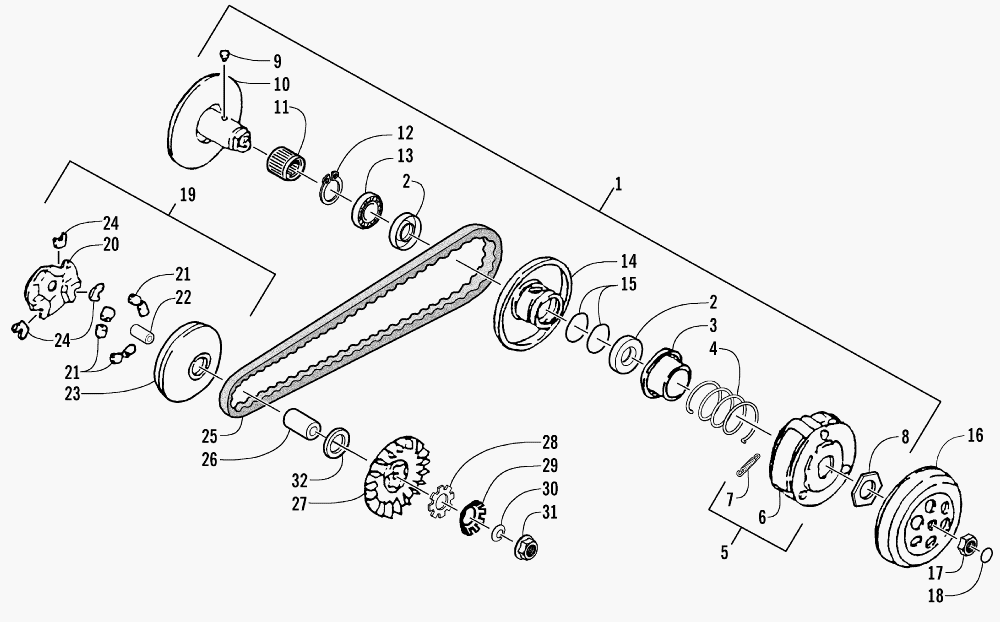

CLUTCH ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2005H2A2BUSR] - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-592 DRIVEN FACE ASSEMBLY (INC. 2-15)
    DRIVEN FACE ASSEMBLY (INC. 2-15)
  • 2
    3301-442 ...SEAL, OIL
    ...SEAL, OIL
  • 3
    3301-118 ...SEAT, SECONDARY SPRING
    ...SEAT, SECONDARY SPRING
  • 4
    3301-594 ...SPRING, COMPRESSION
    ...SPRING, COMPRESSION
  • 5
    3301-112 ...WEIGHT SET, CLUTCH (INC. 6-7)
    ...WEIGHT SET, CLUTCH (INC. 6-7)
  • 6
    3301-110 ......CARRIER, CLUTCH WEIGHT
    ......CARRIER, CLUTCH WEIGHT
  • 7
    3301-111 ......SPRING
    ......SPRING
  • 8
    3301-277 ...NUT
    ...NUT
  • 9
    3301-116 ...PIN, GUIDE
    ...PIN, GUIDE
  • 10
    3301-114 ...FACE, FIXED DRIVEN
    ...FACE, FIXED DRIVEN
  • 11
    3301-420 ...BEARING, NEEDLE
    ...BEARING, NEEDLE
  • 12
    3301-606 ...CIRCLIP
    ...CIRCLIP
  • 13
    3301-417 ...BEARING, RADIAL BALL
    ...BEARING, RADIAL BALL
  • 14
    3301-115 ...FACE, MOVABLE DRIVEN
    ...FACE, MOVABLE DRIVEN
  • 15
    3301-302 ...O-RING
    ...O-RING
  • 16
    3301-100 COVER, CLUTCH
    COVER, CLUTCH
  • 17
    3301-325 NUT
    NUT
  • 18
    3301-298 O-RING
    O-RING
  • 19
    3301-559 DRIVE FACE ASSEMBLY (INC. 20-24)
    DRIVE FACE ASSEMBLY (INC. 20-24)
  • 20
    3301-562 ...PLATE, CAM
    ...PLATE, CAM
  • 21
    3301-607 ...ROLLER, WEIGHT
    ...ROLLER, WEIGHT
  • 22
    3301-528 ...BUSHING
    ...BUSHING
  • 23
    3301-560 ...FACE, MOVABLE DRIVE
    ...FACE, MOVABLE DRIVE
  • 24
    3301-106 ...SLIDE, CAM PLATE
    ...SLIDE, CAM PLATE
  • 25
    3301-113 V-BELT
    V-BELT
  • 26
    3301-527 BUSHING
    BUSHING
  • 27
    3301-561 FACE, FIXED DRIVE
    FACE, FIXED DRIVE
  • 28
    3301-564 WASHER, LOCK - EXTERNAL TOOTH
    WASHER, LOCK - EXTERNAL TOOTH
  • 29
    3301-563 CLUTCH, ONE-WAY
    CLUTCH, ONE-WAY
  • 30
    3301-108 WASHER, CONE SPRING
    WASHER, CONE SPRING
  • 31
    3301-331 NUT, FLANGE
    NUT, FLANGE
  • 32
    3301-593 BUSHING, CLUTCH
    BUSHING, CLUTCH
