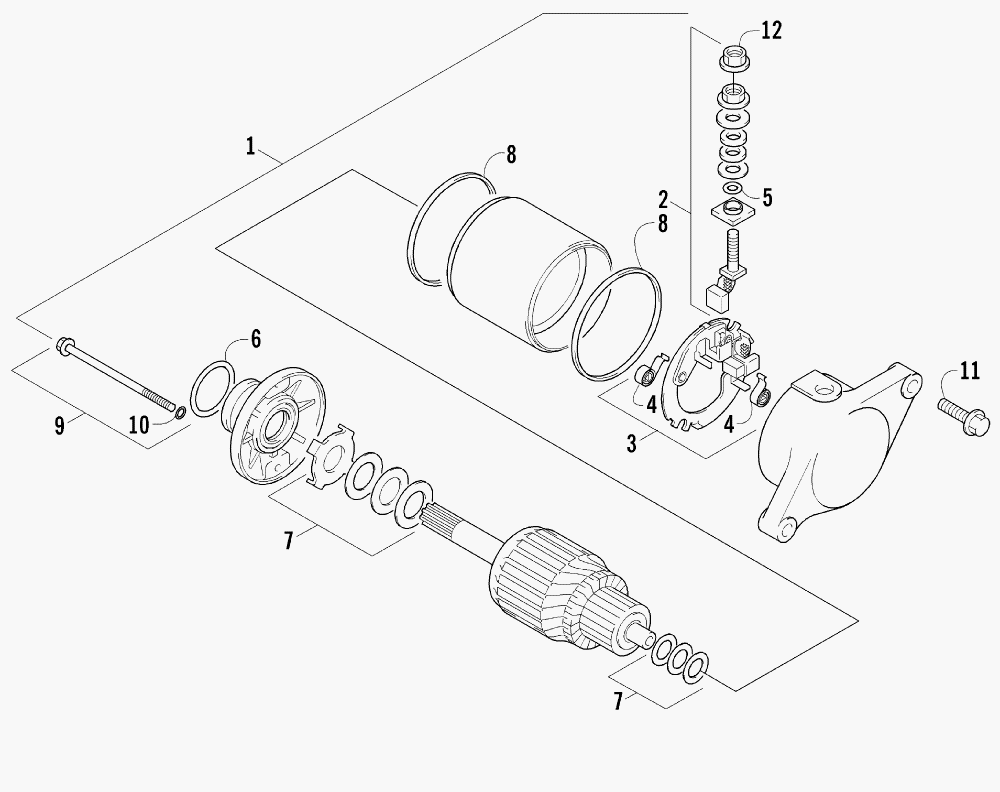

STARTER MOTOR ASSEMBLY для Arctic Cat 400 FIS AUTO (ADV TIMBER CAMO) [A2005ISH4BUSU] - 2005 года выпуска
-
№АртикулНазвание
-
13545-016 MOTOR, STARTER ASSEMBLY (INC. 2-10)MOTOR, STARTER ASSEMBLY (INC. 2-10)
-
23402-671 ...TERMINAL SET, BRUSH...TERMINAL SET, BRUSH
-
33402-672 ...HOLDER SET, BRUSH (INC. 4)...HOLDER SET, BRUSH (INC. 4)
-
43008-551 ......SPRING, BRUSH......SPRING, BRUSH
-
53008-164 ...O-RING...O-RING
-
63423-272 ...O-RING...O-RING
-
73008-099 ...WASHER SET...WASHER SET
-
83423-497 ...O-RING...O-RING
-
93423-498 ...THROUGH-BOLT (INC. 10)...THROUGH-BOLT (INC. 10)
-
103423-496 ......O-RING......O-RING
-
113004-756 BOLTBOLT
-
123423-195 NUTNUT
