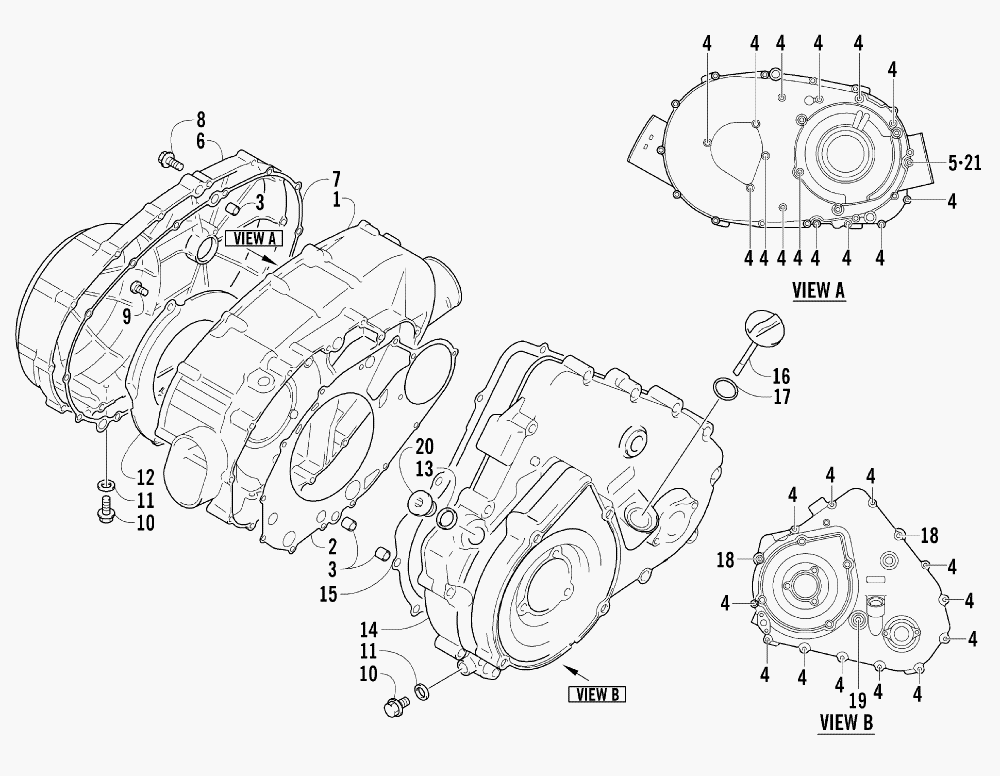

CLUTCH/V-BELT/MAGNETO COVER ASSEMBLY для Arctic Cat 400 4X4 VP AUTO (RED) [A2005ATH4BUSR] - 2005 года выпуска`
-
№АртикулНазвание
-
13402-583 COVER, CLUTCHCOVER, CLUTCH
-
23402-589 GASKETGASKET
-
33423-088 PIN, DOWELPIN, DOWEL
-
43423-098 BOLTBOLT
-
53423-392 BOLTBOLT
-
63402-586 COVER, V-BELTCOVER, V-BELT
-
73402-591 GASKET, V-BELT COVERGASKET, V-BELT COVER
-
80693-327 BOLTBOLT
-
93004-552 SCREWSCREW
-
103004-705 PLUG, DRAINPLUG, DRAIN
-
113402-444 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
123402-996 PLATE, AIR INTAKEPLATE, AIR INTAKE
-
133402-013 GASKETGASKET
-
143402-585 COVER, MAGNETOCOVER, MAGNETO
-
153402-590 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
163402-593 STICK, OIL LEVELSTICK, OIL LEVEL
-
173423-055 O-RING, OIL LEVEL STICKO-RING, OIL LEVEL STICK
-
183423-307 BOLTBOLT
-
193423-430 BOLTBOLT
-
203402-041 PLUGPLUG
-
213003-290 GASKETGASKET
