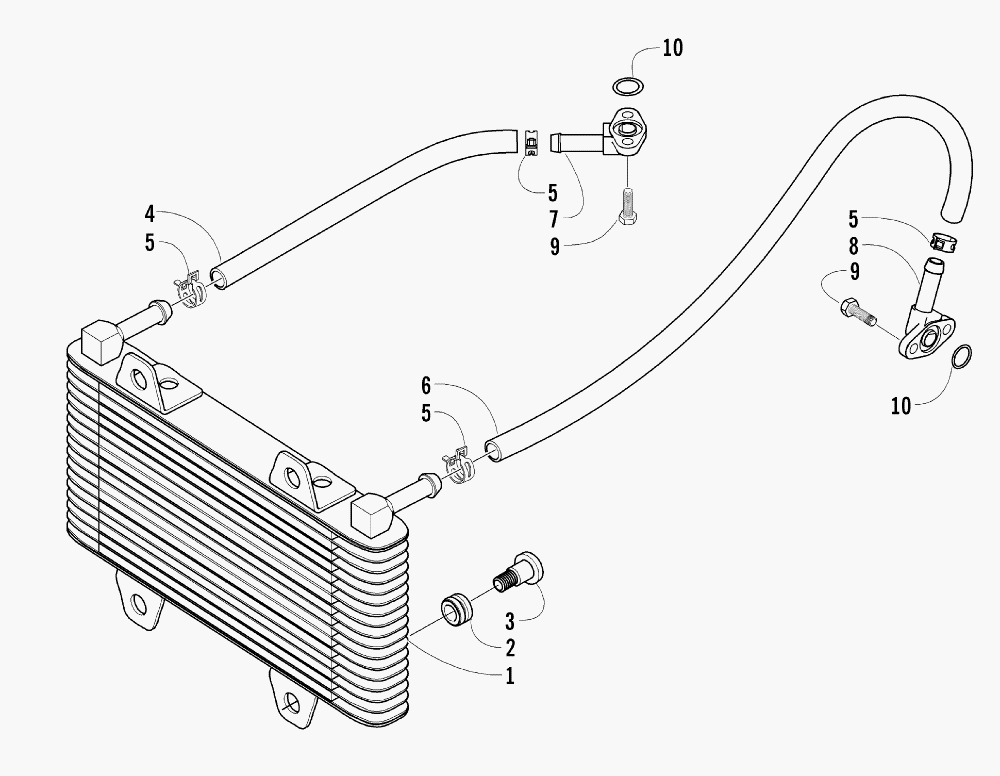

OIL COOLER ASSEMBLY для Arctic Cat 250 2X4 (RED) [A2005ATE2AUSR] - 2005 года выпуска
-
№АртикулНазвание
-
10413-011 COOLER, OILCOOLER, OIL
-
20423-086 GROMMETGROMMET
-
30423-484 SCREW, SHOULDERSCREW, SHOULDER
-
40410-006 HOSE, OIL - OUTPUTHOSE, OIL - OUTPUT
-
50423-098 CLAMP, HOSECLAMP, HOSE
-
60410-007 HOSE, OIL - INPUTHOSE, OIL - INPUT
-
70410-012 FITTING, OIL - ANGLEDFITTING, OIL - ANGLED
-
80410-013 FITTING, OILFITTING, OIL
-
98471-616 SCREW, CAPSCREW, CAP
-
100423-089 O-RING, OIL FITTINGO-RING, OIL FITTING
