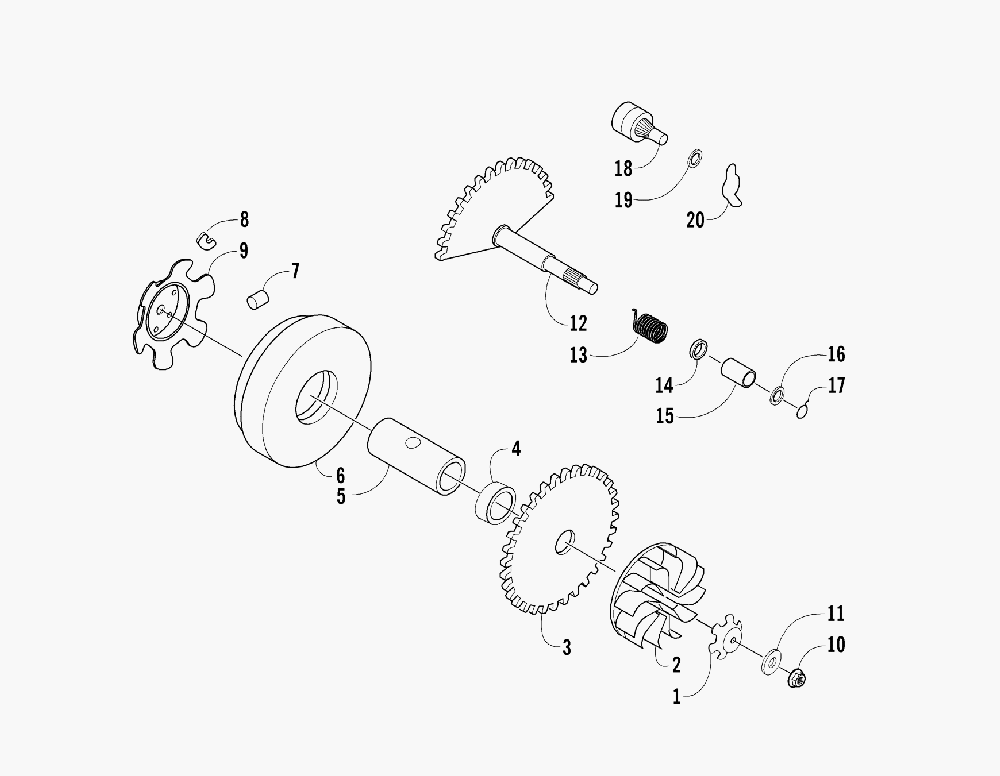

DRIVE CLUTCH ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (CAT GREEN) [A2004H4B2BUSZ] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-718 RATCHET, KICK STARTER
    RATCHET, KICK STARTER
  • 2
    3301-719 FAN, COOLING
    FAN, COOLING
  • 3
    3301-720 FACE, DRIVE
    FACE, DRIVE
  • 4
    3301-876 BUSHING, CLUTCH
    BUSHING, CLUTCH
  • 5
    3301-721 BUSHING
    BUSHING
  • 6
    3301-722 FACE, MOVABLE DRIVE
    FACE, MOVABLE DRIVE
  • 7
    3301-723 ROLLER, WEIGHT
    ROLLER, WEIGHT
  • 8
    3301-724 SLIDE, CAM PLATE
    SLIDE, CAM PLATE
  • 9
    3301-725 PLATE, CAM
    PLATE, CAM
  • 10
    3301-332 NUT, LOCK
    NUT, LOCK
  • 11
    3301-726 WASHER
    WASHER
  • 12
    3301-727 SPINDLE, KICK STARTER
    SPINDLE, KICK STARTER
  • 13
    3301-728 SPRING, KICK STARTER
    SPRING, KICK STARTER
  • 14
    3301-729 COLLAR, BOSS
    COLLAR, BOSS
  • 15
    3301-730 BUSHING, STARTER SPINDLE
    BUSHING, STARTER SPINDLE
  • 16
    3301-731 WASHER
    WASHER
  • 17
    3301-732 CIRCLIP
    CIRCLIP
  • 18
    3301-733 PINION, KICK STARTER - ASSEMBLY
    PINION, KICK STARTER - ASSEMBLY
  • 19
    3301-734 WASHER
    WASHER
  • 20
    3301-735 CLIP, SPRING - KICK STARTER PINION
    CLIP, SPRING - KICK STARTER PINION
