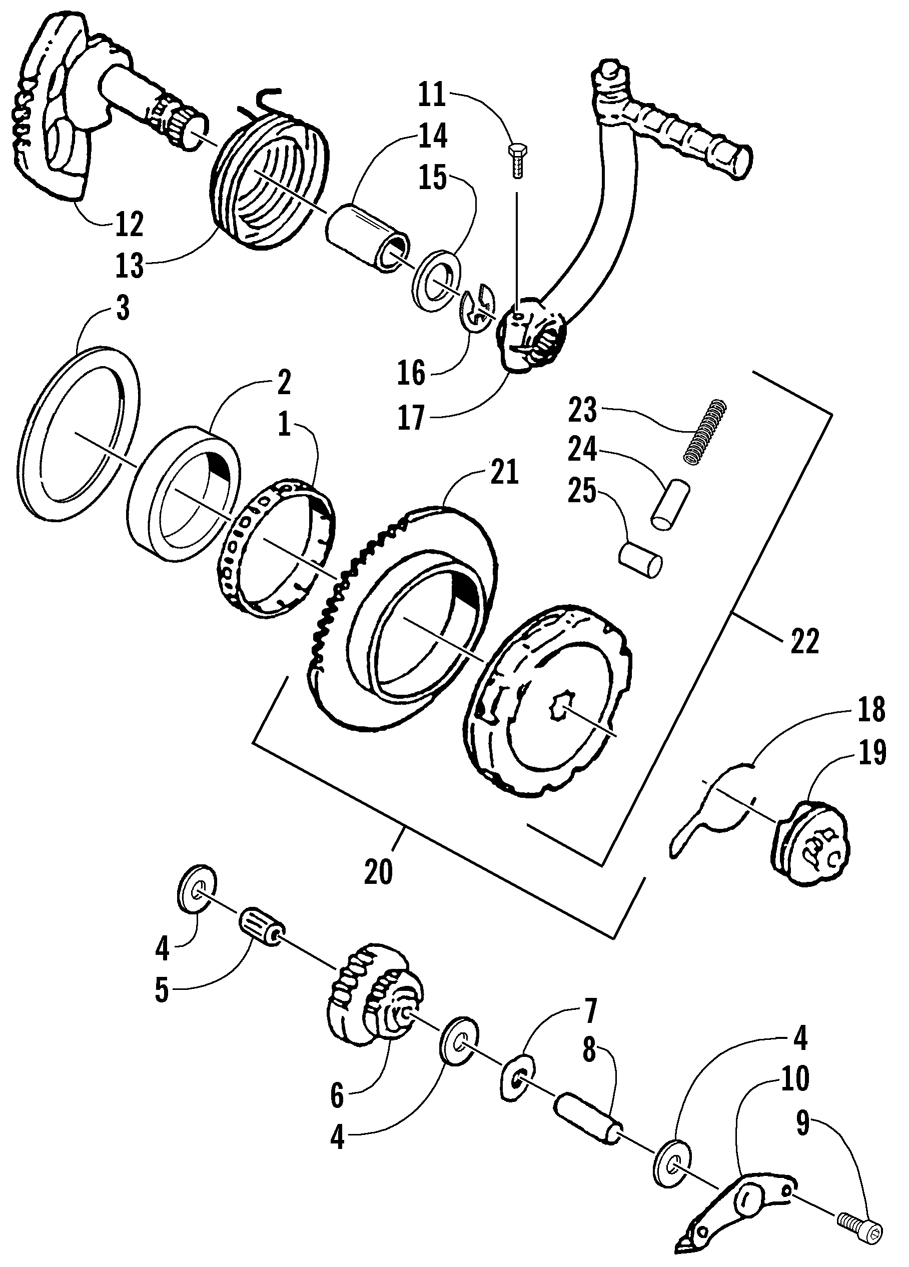

STARTER ASSEMBLY для Arctic Cat 90 2X4 AUTO US (RED) [A2004ATB2BUSR] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3301-423 BEARING, NEEDLE
    BEARING, NEEDLE
  • 2
    3301-424 BOSS, BEARING
    BOSS, BEARING
  • 3
    3301-355 WASHER
    WASHER
  • 4
    3301-344 WASHER
    WASHER
  • 5
    3301-418 BEARING, NEEDLE
    BEARING, NEEDLE
  • 6
    3301-121 GEAR, IDLER
    GEAR, IDLER
  • 7
    3301-311 WASHER, WAVE
    WASHER, WAVE
  • 8
    3301-426 SHAFT, IDLER
    SHAFT, IDLER
  • 9
    3301-287 SCREW, CAP
    SCREW, CAP
  • 10
    3301-009 PLATE, IDLER GEAR
    PLATE, IDLER GEAR
  • 11
    3301-391 SCREW, CAP
    SCREW, CAP
  • 12
    3301-127 STARTER SHAFT ASSEMBLY
    STARTER SHAFT ASSEMBLY
  • 13
    3301-128 SPRING, RESET - STARTER SHAFT
    SPRING, RESET - STARTER SHAFT
  • 14
    3301-429 BUSHING
    BUSHING
  • 15
    3301-351 WASHER
    WASHER
  • 16
    3301-377 CIRCLIP
    CIRCLIP
  • 17
    3301-129 STARTER CRANK ASSEMBLY
    STARTER CRANK ASSEMBLY
  • 18
    3301-125 CLIP, SPRING - STARTER PINION
    CLIP, SPRING - STARTER PINION
  • 19
    3301-126 STARTER PINION ASSEMBLY
    STARTER PINION ASSEMBLY
  • 20
    3301-130 STARTER CLUTCH - ELECTRIC - ASSEMBLY (INC. 21-25)
    STARTER CLUTCH - ELECTRIC - ASSEMBLY (INC. 21-25)
  • 21
    3301-124 ...WHEEL, STARTER CLUTCH
    ...WHEEL, STARTER CLUTCH
  • 22
    3301-131 ...CLUTCH SET, ELECTRIC STARTER (INC. 23-25)
    ...CLUTCH SET, ELECTRIC STARTER (INC. 23-25)
  • 23
    3301-134 ......SPRING, CLUTCH
    ......SPRING, CLUTCH
  • 24
    3301-133 ......GUIDE, CLUTCH
    ......GUIDE, CLUTCH
  • 25
    3301-132 ......ROLLER, CLUTCH
    ......ROLLER, CLUTCH
