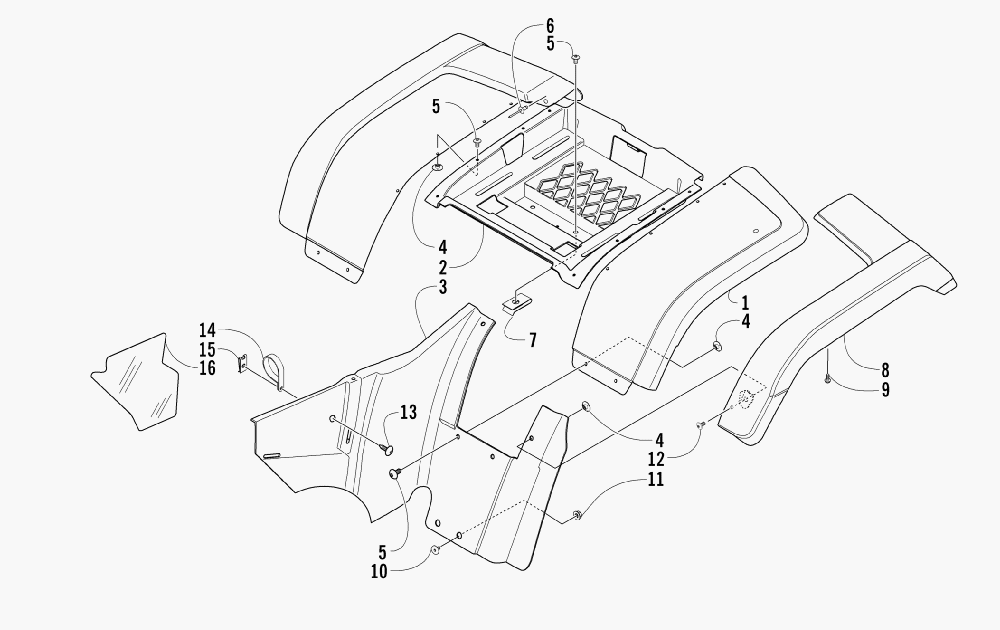

REAR BODY PANEL ASSEMBLY для Arctic Cat 500 4X4 TRV AUTO (CAT GEEN) [A2004TDM4BUSZ] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0506-908 PANEL, FENDER - REAR - RIGHT (RED)
    PANEL, FENDER - REAR - RIGHT (RED)
  • 1
    0506-910 PANEL, FENDER - REAR - LEFT (RED)
    PANEL, FENDER - REAR - LEFT (RED)
  • 1
    0506-909 PANEL, FENDER - REAR - RIGHT (GREEN)
    PANEL, FENDER - REAR - RIGHT (GREEN)
  • 1
    0506-911 PANEL, FENDER - REAR - LEFT (GREEN)
    PANEL, FENDER - REAR - LEFT (GREEN)
  • 1
    1506-228 PANEL, FENDER - REAR - RIGHT (CAT GREEN)
    PANEL, FENDER - REAR - RIGHT (CAT GREEN)
  • 1
    1506-230 PANEL, FENDER - REAR - LEFT (CAT GREEN)
    PANEL, FENDER - REAR - LEFT (CAT GREEN)
  • 2
    0506-935 TRAY, STORAGE
    TRAY, STORAGE
  • 3
    0506-923 EXTENSION, FENDER - REAR - RIGHT
    EXTENSION, FENDER - REAR - RIGHT
  • 3
    0506-924 EXTENSION, FENDER - REAR - LEFT
    EXTENSION, FENDER - REAR - LEFT
  • 4
    0423-077 T-NUT W/TEETH
    T-NUT W/TEETH
  • 5
    0423-419 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0423-046 RIVET, PLASTIC
    RIVET, PLASTIC
  • 7
    0423-031 NUT, SPEED
    NUT, SPEED
  • 8
    0506-552 FLARE, REAR - RIGHT
    FLARE, REAR - RIGHT
  • 8
    0506-553 FLARE, REAR - LEFT
    FLARE, REAR - LEFT
  • 9
    0423-342 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 10
    0423-101 SCREW, BODY
    SCREW, BODY
  • 11
    8424-602 NUT, FLANGE
    NUT, FLANGE
  • 12
    0423-355 SCREW, SHOULDER
    SCREW, SHOULDER
  • 13
    0623-784 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 14
    0423-044 CLAMP, TUBE
    CLAMP, TUBE
  • 15
    0423-466 CLIP, TINERMAN
    CLIP, TINERMAN
  • 16
    1406-262 SHIELD, HEAT
    SHIELD, HEAT
