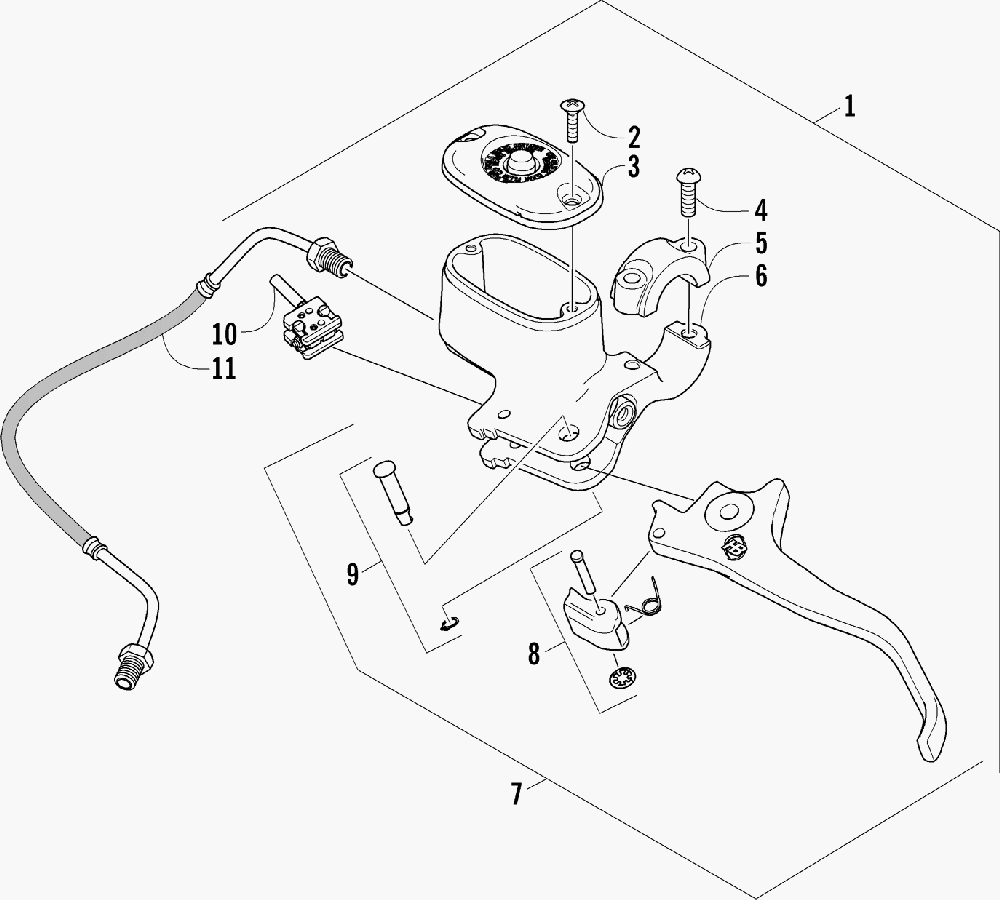

HYDRAULIC HAND BRAKE ASSEMBLY для Arctic Cat 500 4X4 FIS MRP MAN (GREEN) [A2004ISM4AUSS] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0502-561 BRAKE ASSEMBLY (INC. 2-10)
    BRAKE ASSEMBLY (INC. 2-10)
  • 2
    0502-566 ...SCREW, RESERVOIR COVER - KIT
    ...SCREW, RESERVOIR COVER - KIT
  • 3
    0502-565 ...COVER, RESERVOIR - KIT
    ...COVER, RESERVOIR - KIT
  • 4
    0502-568 ...SCREW, MASTER CYLINDER CLAMP - KIT
    ...SCREW, MASTER CYLINDER CLAMP - KIT
  • 5
    0502-567 ...CLAMP, MASTER CYLINDER - KIT
    ...CLAMP, MASTER CYLINDER - KIT
  • 6
    0502-516 ...MASTER CYLINDER ASSEMBLY - KIT
    ...MASTER CYLINDER ASSEMBLY - KIT
  • 7
    0502-562 ...LEVER ASSEMBLY - KIT (INC. 8-9)
    ...LEVER ASSEMBLY - KIT (INC. 8-9)
  • 8
    0502-563 ......LOCK, BRAKE LEVER - KIT
    ......LOCK, BRAKE LEVER - KIT
  • 9
    0502-580 ......LEVER PIN - KIT
    ......LEVER PIN - KIT
  • 10
    0502-564 ...SWITCH, BRAKE - KIT
    ...SWITCH, BRAKE - KIT
  • 11
    1402-212 BRAKELINE, HYDRAULIC
    BRAKELINE, HYDRAULIC
