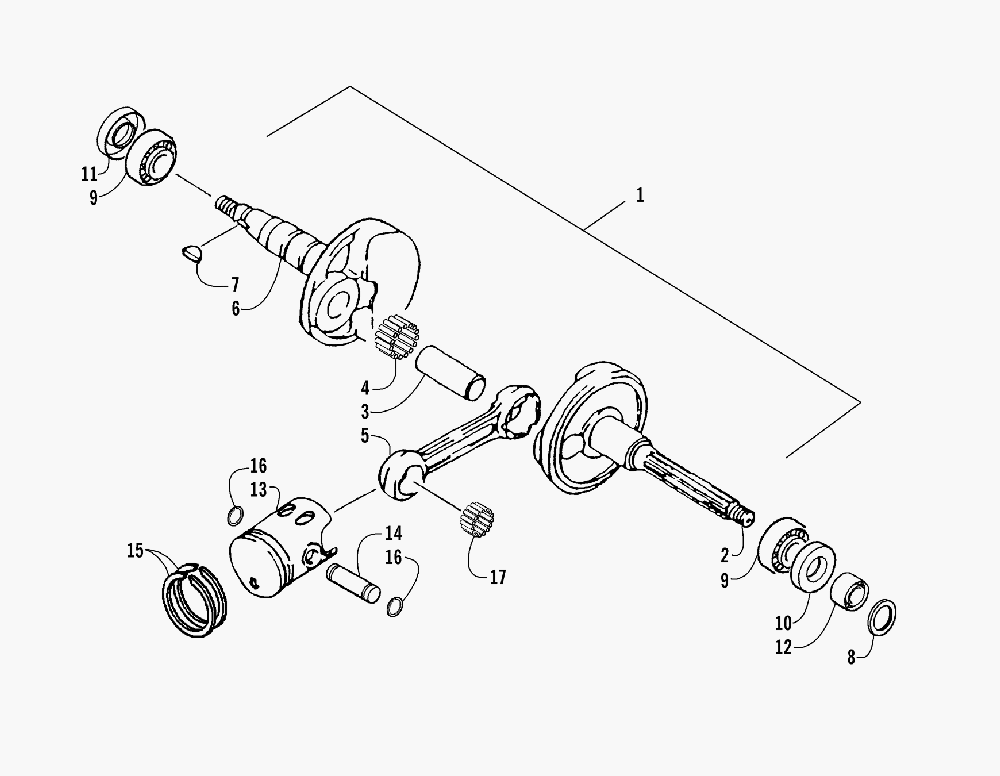

CRANKSHAFT AND PISTON ASSEMBLY для Arctic Cat 50 2X4 AUTO (CAT GREEN) [A2004ATA2BUSZ] - 2004 года выпуска`
-
№АртикулНазвание
-
13301-537 CRANKSHAFT ASSEMBLY (INC. 2-7)CRANKSHAFT ASSEMBLY (INC. 2-7)
-
23301-545 ...CRANK, LEFT...CRANK, LEFT
-
33301-546 ...PIN, CRANK...PIN, CRANK
-
43301-526 ...BEARING, NEEDLE...BEARING, NEEDLE
-
53301-608 ...ROD, CONNECTING...ROD, CONNECTING
-
63301-543 ...CRANK, RIGHT...CRANK, RIGHT
-
73301-285 ...KEY...KEY
-
83301-584 WASHERWASHER
-
93301-415 BEARING, RADIAL BALLBEARING, RADIAL BALL
-
103301-438 SEAL, OILSEAL, OIL
-
113301-437 SEAL, OILSEAL, OIL
-
123301-544 COLLAR, CRANKCOLLAR, CRANK
-
133301-539 PISTONPISTON
-
143301-540 PIN, PISTONPIN, PISTON
-
153301-538 RING, PISTON - SETRING, PISTON - SET
-
163301-541 CLIP, PISTON PINCLIP, PISTON PIN
-
173301-525 BEARING, NEEDLEBEARING, NEEDLE
