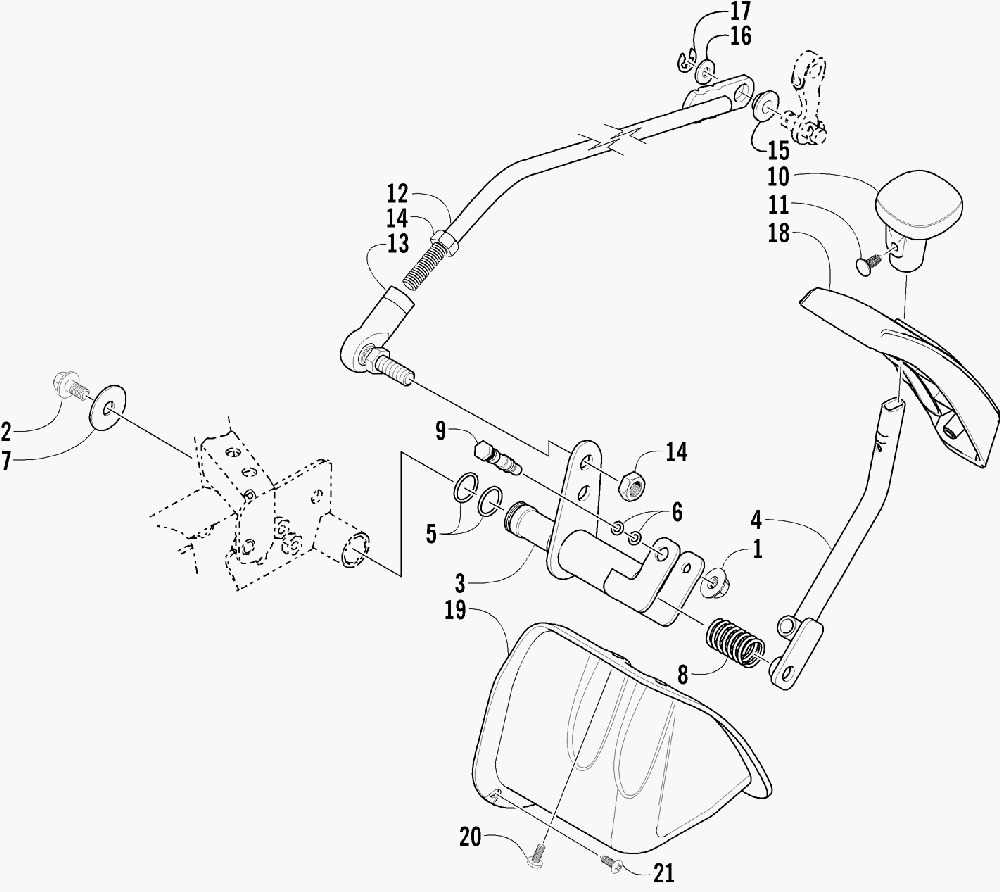

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat 400 4X4 TBX AUTO (RED) [A2004BXH4BUSR] - 2004 года выпуска`
![](/wa-data/public/shop/sheme/arctic-cat/atv/ce935967-d424-47d8-a208-9519647b2796.gif)
-
№АртикулНазвание
-
18424-602 NUTNUT
-
28408-812 SCREW, CAPSCREW, CAP
-
30502-187 AXLE, REVERSE SHIFT LEVERAXLE, REVERSE SHIFT LEVER
-
40502-185 LEVER, REVERSE SHIFTLEVER, REVERSE SHIFT
-
50423-299 O-RINGO-RING
-
60423-182 O-RINGO-RING
-
70423-087 WASHERWASHER
-
80502-410 SPRING, REVERSE SHIFT LEVERSPRING, REVERSE SHIFT LEVER
-
90402-675 AXLE, PIVOTAXLE, PIVOT
-
100402-843 HANDLE, REVERSE SHIFT LEVERHANDLE, REVERSE SHIFT LEVER
-
110423-345 CLIP, PUSHCLIP, PUSH
-
120502-311 LINKAGE, SHIFTLINKAGE, SHIFT
-
130402-844 END, RODEND, ROD
-
140623-294 NUTNUT
-
150423-091 BUSHING, SHIFT LINKAGEBUSHING, SHIFT LINKAGE
-
168050-242 WASHERWASHER
-
170423-169 E-RINGE-RING
-
180402-685 PLATE, SHIFTPLATE, SHIFT
-
190406-943 SHIELD, LINKAGESHIELD, LINKAGE
-
200423-371 SCREW, MACHINESCREW, MACHINE
-
210623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
