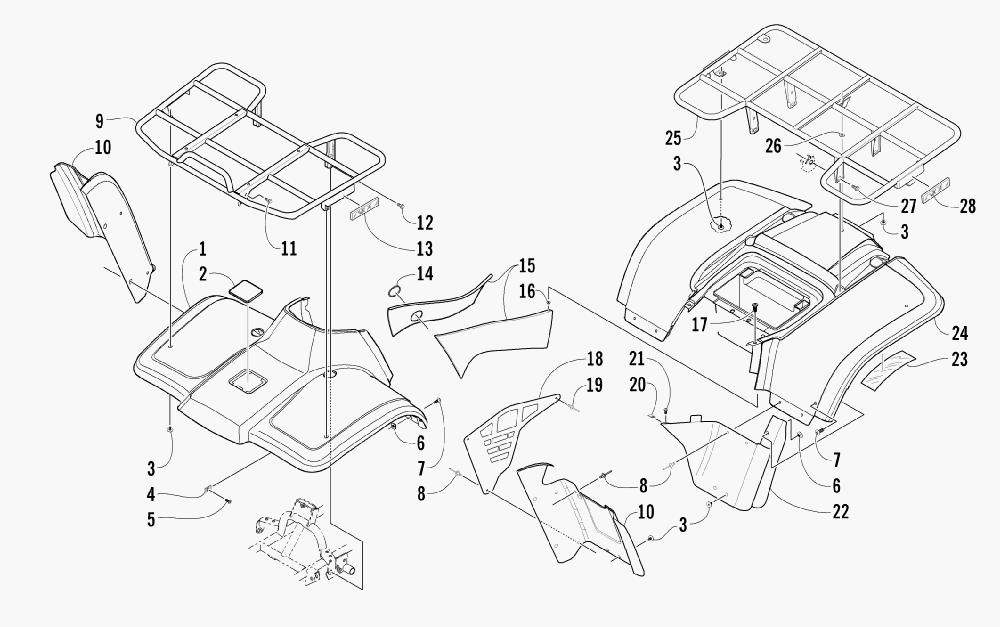

BODY PANEL ASSEMBLY для Arctic Cat 250 4X4 (RED) [A2004ATE4AUSR] - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0506-605 PANEL, FENDER - FRONT (INC. 2) (RED)
    PANEL, FENDER - FRONT (INC. 2) (RED)
  • 1
    0506-604 PANEL, FENDER - FRONT (INC. 2) (GREEN)
    PANEL, FENDER - FRONT (INC. 2) (GREEN)
  • 2
    1406-142 ...COVER, ACCESS (RED)
    ...COVER, ACCESS (RED)
  • 2
    1406-141 ...COVER, ACCESS (GREEN)
    ...COVER, ACCESS (GREEN)
  • 3
    0423-101 SCREW, BODY
    SCREW, BODY
  • 4
    0423-031 NUT, SPEED
    NUT, SPEED
  • 5
    8477-616 SCREW, MACHINE
    SCREW, MACHINE
  • 6
    0423-077 T-NUT
    T-NUT
  • 7
    8477-616 SCREW, SHOULDER (4X4)
    SCREW, SHOULDER (4X4)
  • 8
    0423-046 RIVET, PLASTIC
    RIVET, PLASTIC
  • 9
    1506-178 RACK - FRONT - PLATINUM (RED)
    RACK - FRONT - PLATINUM (RED)
  • 9
    0506-525 RACK - FRONT - BLACK (GREEN)
    RACK - FRONT - BLACK (GREEN)
  • 10
    0506-272 PANEL, KICK - RIGHT
    PANEL, KICK - RIGHT
  • 10
    0506-629 PANEL, KICK - LEFT
    PANEL, KICK - LEFT
  • 11
    0423-360 SCREW, CAP
    SCREW, CAP
  • 12
    8408-816 SCREW, CAP
    SCREW, CAP
  • 13
    0411-646 DECAL, REFLECTOR - AMBER
    DECAL, REFLECTOR - AMBER
  • 14
    0470-404 GROMMET, FUEL SHUT-OFF VALVE
    GROMMET, FUEL SHUT-OFF VALVE
  • 15
    0506-548 PANEL, SIDE - RIGHT (RED)
    PANEL, SIDE - RIGHT (RED)
  • 15
    0506-243 PANEL, SIDE - LEFT (RED)
    PANEL, SIDE - LEFT (RED)
  • 15
    0506-549 PANEL, SIDE - RIGHT (GREEN)
    PANEL, SIDE - RIGHT (GREEN)
  • 15
    0506-673 PANEL, SIDE - LEFT (GREEN)
    PANEL, SIDE - LEFT (GREEN)
  • 16
    0123-010 NUT, EXPANSION
    NUT, EXPANSION
  • 17
    0423-068 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    0406-374 PANEL, DEFLECTOR
    PANEL, DEFLECTOR
  • 19
    0623-362 RIVET, PLASTIC
    RIVET, PLASTIC
  • 20
    0423-060 CLIP, TINERMAN
    CLIP, TINERMAN
  • 21
    0623-309 SCREW, SELF-TAPPING
    SCREW, SELF-TAPPING
  • 22
    0406-084 FENDER EXTENSION - REAR - RIGHT
    FENDER EXTENSION - REAR - RIGHT
  • 22
    0406-085 FENDER EXTENSION - REAR - LEFT
    FENDER EXTENSION - REAR - LEFT
  • 23
    0619-230 TAPE, FOIL
    TAPE, FOIL
  • 24
    0506-617 PANEL, FENDER - REAR (RED)
    PANEL, FENDER - REAR (RED)
  • 24
    0506-619 PANEL, FENDER - REAR (GREEN)
    PANEL, FENDER - REAR (GREEN)
  • 25
    1506-179 RACK - REAR - PLATINUM (RED)
    RACK - REAR - PLATINUM (RED)
  • 25
    0506-861 RACK - REAR - BLACK (GREEN)
    RACK - REAR - BLACK (GREEN)
  • 26
    0423-332 WASHER, RUBBER
    WASHER, RUBBER
  • 27
    8409-020 SCREW, CAP
    SCREW, CAP
  • 28
    0411-647 DECAL, REFLECTOR - RED
    DECAL, REFLECTOR - RED
