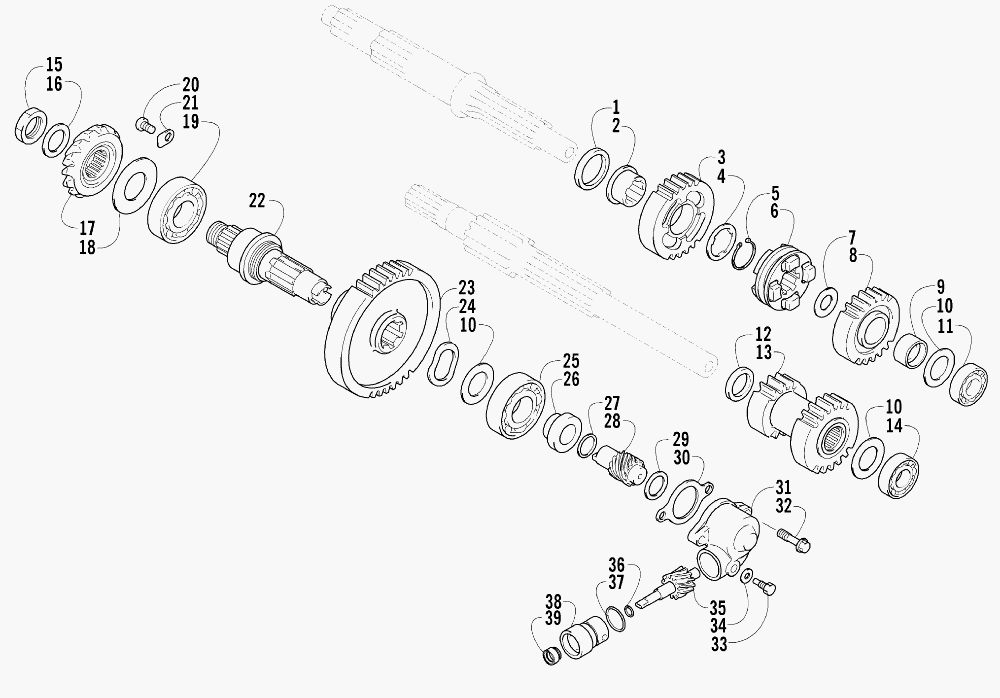

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 500 4X4 FIS MAN (RED) [A2003ISM4AUSR] - 2003 года выпуска
-
№АртикулНазвание
-
13446-246 SPACER, DRIVE GEARSPACER, DRIVE GEAR
-
23446-247 BUSHING, DRIVE GEAR NO.1BUSHING, DRIVE GEAR NO.1
-
33446-342 GEAR, DRIVE - NO.1GEAR, DRIVE - NO.1
-
43423-036 WASHER, DRIVE GEAR NO. 1WASHER, DRIVE GEAR NO. 1
-
53423-066 CIRCLIP, DRIVE GEAR NO.1CIRCLIP, DRIVE GEAR NO.1
-
63446-343 DOG, SLIDINGDOG, SLIDING
-
73402-195 WASHER, DRIVE GEAR NO.2WASHER, DRIVE GEAR NO.2
-
83446-248 GEAR, DRIVE - NO.2GEAR, DRIVE - NO.2
-
93446-103 BUSHING, DRIVE GEAR NO.2BUSHING, DRIVE GEAR NO.2
-
103402-381 WASHERWASHER
-
113402-046 BEARING, DRIVESHAFT - LEFTBEARING, DRIVESHAFT - LEFT
-
123423-148 SPACER, IDLE GEARSPACER, IDLE GEAR
-
133446-066 GEAR, IDLEGEAR, IDLE
-
143402-047 BEARING, COUNTERSHAFT - LEFTBEARING, COUNTERSHAFT - LEFT
-
153423-023 NUTNUT
-
163423-032 WASHERWASHER
-
173446-274 GEAR, SECONDARY DRIVE BEVELGEAR, SECONDARY DRIVE BEVEL
-
183423-549 SHIM SETSHIM SET
-
193402-055 BEARINGBEARING
-
203423-370 SCREWSCREW
-
213446-031 RETAINER, SECONDARY DRIVESHAFT BEARINGRETAINER, SECONDARY DRIVESHAFT BEARING
-
223446-344 SHAFT, OUTPUTSHAFT, OUTPUT
-
233446-345 GEAR, DRIVENGEAR, DRIVEN
-
243423-548 LOCK WASHERLOCK WASHER
-
253402-045 BEARINGBEARING
-
263446-114 SPACERSPACER
-
273423-146 WASHER, DRIVE GEAR - RIGHTWASHER, DRIVE GEAR - RIGHT
-
283446-060 GEAR, DRIVE - SPEEDOMETERGEAR, DRIVE - SPEEDOMETER
-
293423-145 WASHER, DRIVE GEAR - LEFTWASHER, DRIVE GEAR - LEFT
-
303446-244 GASKET, SPEEDOMETER GEAR HOUSINGGASKET, SPEEDOMETER GEAR HOUSING
-
313446-057 HOUSING, SPEEDOMETER GEARHOUSING, SPEEDOMETER GEAR
-
323423-346 BOLT, SPEEDOMETER GEAR HOUSINGBOLT, SPEEDOMETER GEAR HOUSING
-
333423-143 BOLT, DRIVEN GEAR SLEEVEBOLT, DRIVEN GEAR SLEEVE
-
343402-009 WASHERWASHER
-
353446-061 GEAR, DRIVEN - SPEEDOMETERGEAR, DRIVEN - SPEEDOMETER
-
363423-144 WASHER, DRIVEN GEARWASHER, DRIVEN GEAR
-
373423-056 O-RINGO-RING
-
383446-058 SLEEVE, DRIVEN GEARSLEEVE, DRIVEN GEAR
-
393402-077 SEAL, DRIVEN GEARSEAL, DRIVEN GEAR
