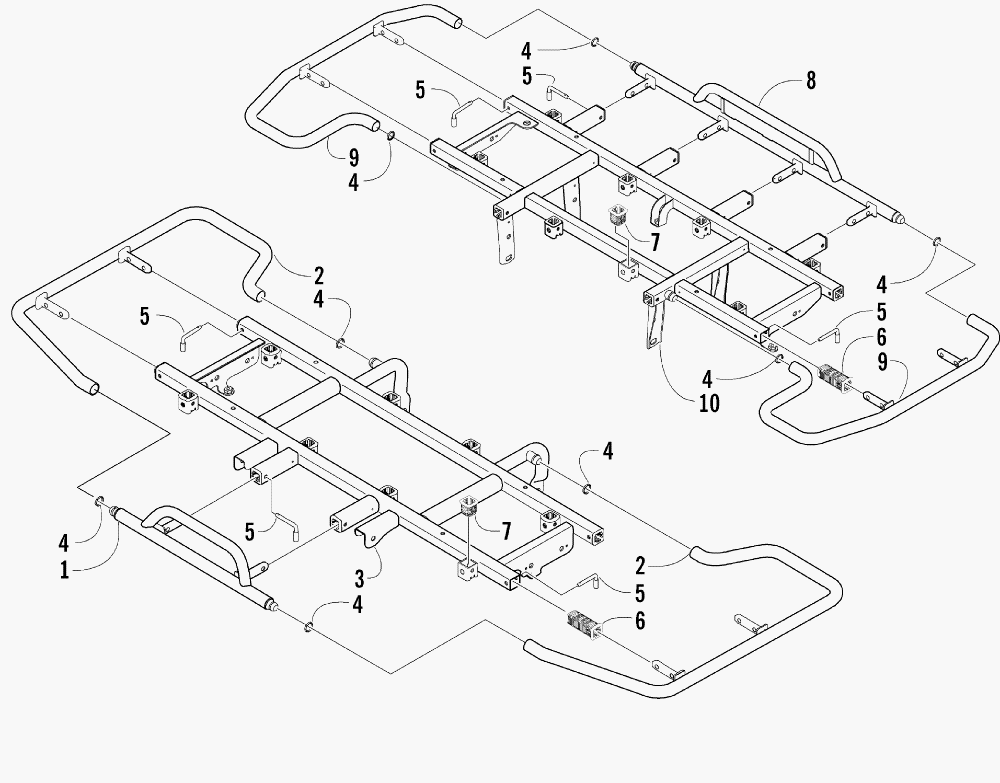

FRONT AND REAR RACK ASSEMBLIES (FOR GREEN/MRP ONLY) для Arctic Cat 500 4X4 FIS AUTO (RED) [A2003ISM4BUSR] - 2003 года выпуска
-
№АртикулНазвание
-
10541-133 CENTER, RACK - FRONTCENTER, RACK - FRONT
-
20541-134 SIDE, RACK - FRONTSIDE, RACK - FRONT
-
30541-135 FRAME, RACK - FRONTFRAME, RACK - FRONT
-
40623-903 O-RINGO-RING
-
50541-189 PINPIN
-
60441-556 BUSHING, RACKBUSHING, RACK
-
70441-592 BUSHING, RACKBUSHING, RACK
-
80541-130 CENTER, RACK - REARCENTER, RACK - REAR
-
90541-131 SIDE, RACK - REARSIDE, RACK - REAR
-
100541-132 FRAME, RACK - REARFRAME, RACK - REAR
