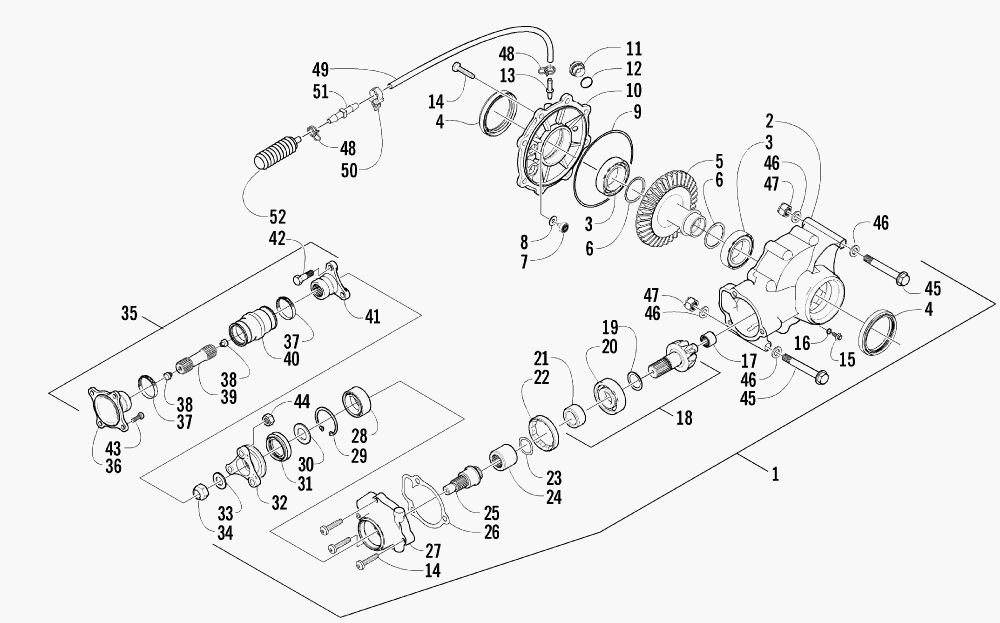

REAR DRIVE GEARCASE ASSEMBLY (UP TO VIN: 4UF03ATV43T232065) для Arctic Cat 500 4X4 FIS AUTO (GREEN / MRP) [A2003ISM4BUSS] - 2003 года выпуска`
-
№АртикулНазвание
-
10502-293 GEARCASE, REAR DRIVE - ASSEMBLY (INC. 2-34)GEARCASE, REAR DRIVE - ASSEMBLY (INC. 2-34)
-
20502-352 ...HOUSING, GEARCASE...HOUSING, GEARCASE
-
30402-393 ...BEARING...BEARING
-
40402-394 ...SEAL...SEAL
-
50402-964 ...GEAR, RING - 34T...GEAR, RING - 34T
-
60402-405 ...SHIM,41X49X1.3...SHIM,41X49X1.3
-
60402-406 ...SHIM,41X49X1.4...SHIM,41X49X1.4
-
60402-407 ...SHIM,41X49X1.5...SHIM,41X49X1.5
-
60402-408 ...SHIM,41X49X1.6...SHIM,41X49X1.6
-
60402-409 ...SHIM,41X49X1.7...SHIM,41X49X1.7
-
70402-326 ...BUTTON, THRUST...BUTTON, THRUST
-
80402-429 ...SHIM,6.3X18X1.3...SHIM,6.3X18X1.3
-
80402-430 ...SHIM,6.3X18X1.4...SHIM,6.3X18X1.4
-
80402-431 ...SHIM,6.3X18X1.5...SHIM,6.3X18X1.5
-
80402-432 ...SHIM,6.3X18X1.6...SHIM,6.3X18X1.6
-
80402-433 ...SHIM,6.3X18X1.7...SHIM,6.3X18X1.7
-
90423-149 ...O-RING...O-RING
-
100502-346 ...COVER, GEARCASE...COVER, GEARCASE
-
110402-333 ...PLUG, FILL (INC. 12)...PLUG, FILL (INC. 12)
-
120423-154 ......O-RING......O-RING
-
130402-871 ...FITTING...FITTING
-
140423-118 ...SCREW, SELF-TAPPING...SCREW, SELF-TAPPING
-
150402-450 ...PLUG, MAGNETIC (INC. 16)...PLUG, MAGNETIC (INC. 16)
-
160423-153 ......O-RING......O-RING
-
170402-328 ...BEARING...BEARING
-
180502-155 ...GEAR, PINION - ASSEMBLY - 11T (INC. 19-21)...GEAR, PINION - ASSEMBLY - 11T (INC. 19-21)
-
190402-424 ......SHIM,25.7X34.9X1.3......SHIM,25.7X34.9X1.3
-
190402-425 ......SHIM,25.7X34.9X1.4......SHIM,25.7X34.9X1.4
-
190402-426 ......SHIM,25.7X34.9X1.5......SHIM,25.7X34.9X1.5
-
190402-427 ......SHIM,25.7X34.9X1.6......SHIM,25.7X34.9X1.6
-
190402-428 ......SHIM,25.7X34.9X1.7......SHIM,25.7X34.9X1.7
-
200402-327 ......BEARING......BEARING
-
210402-336 ......COLLAR, RETAINING......COLLAR, RETAINING
-
220402-331 ...COLLAR, LOCK...COLLAR, LOCK
-
230402-982 ...WASHER, WAVE...WASHER, WAVE
-
240402-981 ...COLLAR, SHAFT...COLLAR, SHAFT
-
250402-410 ...SHAFT, THRUST...SHAFT, THRUST
-
260402-947 ...GASKET, FLANGE...GASKET, FLANGE
-
270502-345 ...HOUSING, PINION...HOUSING, PINION
-
280402-003 ...BEARING...BEARING
-
290402-332 ...RING, RETAINING...RING, RETAINING
-
300402-346 ...SPACER, DRIVE...SPACER, DRIVE
-
310402-395 ...SEAL...SEAL
-
320402-422 ...FLANGE, DRIVE - ASSEMBLY...FLANGE, DRIVE - ASSEMBLY
-
330423-134 ...WASHER...WASHER
-
340423-135 ...NUT...NUT
-
350502-325 COUPLER, DRIVE (INC. 36-41)COUPLER, DRIVE (INC. 36-41)
-
370423-393 ...CLAMP, BOOT...CLAMP, BOOT
-
380673-618 ...BUMPER, PROPELLER SHAFT...BUMPER, PROPELLER SHAFT
-
400402-953 ...BOOT...BOOT
-
428409-030 SCREW, CAPSCREW, CAP
-
438408-820 SCREW, CAPSCREW, CAP
-
440423-157 NUT, LOCKNUT, LOCK
-
450423-404 BOLTBOLT
-
460423-426 WASHERWASHER
-
478428-002 NUT, LOCKNUT, LOCK
-
480423-315 CLAMP, FITTINGCLAMP, FITTING
-
490410-048 HOSE, VENT - 10 FTHOSE, VENT - 10 FT
-
500623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
510470-462 FITTING, VENTFITTING, VENT
-
520402-147 BLADDER, GEARCASEBLADDER, GEARCASE
