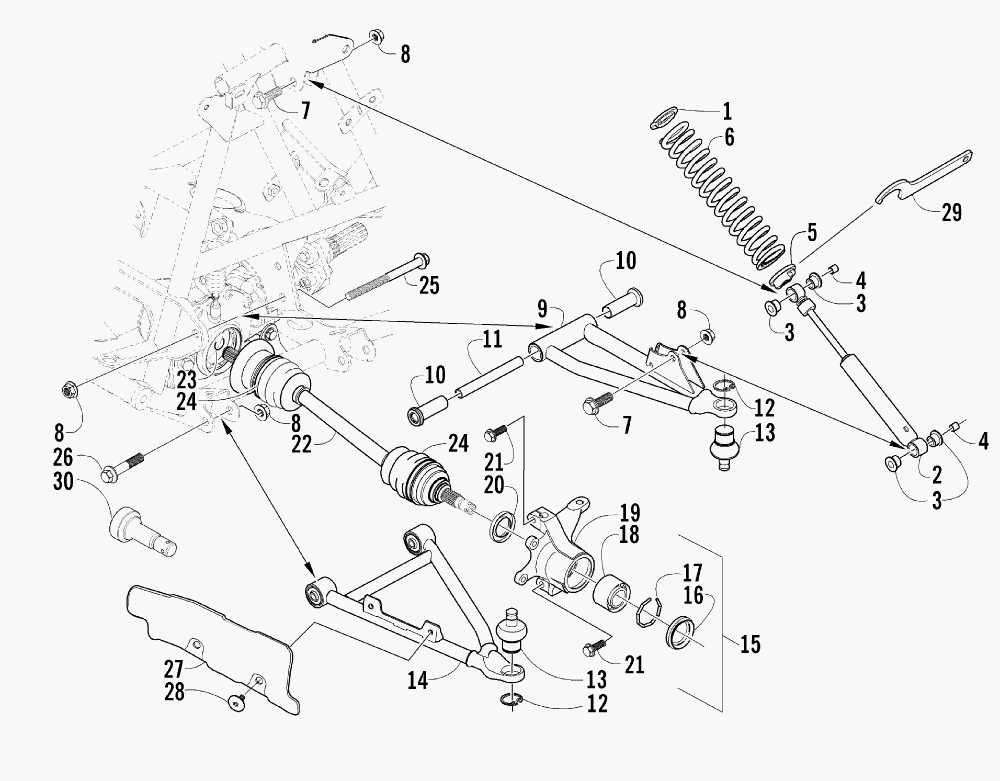

FRONT SUSPENSION ASSEMBLY для Arctic Cat 400 4X4 FIS AUTO (GREEN / MRP) [A2003ISH4BUSS] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 2
    0403-111 SHOCK ABSORBER - FRONT (INC. 3-4) (4X4)
    SHOCK ABSORBER - FRONT (INC. 3-4) (4X4)
  • 3
    0604-310 ...BUSHING, SHOCK ABSORBER
    ...BUSHING, SHOCK ABSORBER
  • 4
    0403-028 ...SLEEVE, SHOCK
    ...SLEEVE, SHOCK
  • 5
    0403-102 CAM, SPRING ADJUSTER
    CAM, SPRING ADJUSTER
  • 6
    0403-091 SPRING, SHOCK ABSORBER (4X4)
    SPRING, SHOCK ABSORBER (4X4)
  • 7
    8409-040 SCREW, CAP
    SCREW, CAP
  • 8
    8428-002 NUT, LOCK
    NUT, LOCK
  • 9
    0503-196 A-ARM, UPPER RIGHT - ASSEMBLY (INC. 10-13)
    A-ARM, UPPER RIGHT - ASSEMBLY (INC. 10-13)
  • 9
    0503-197 A-ARM, UPPER LEFT - ASSEMBLY (INC. 10-13)
    A-ARM, UPPER LEFT - ASSEMBLY (INC. 10-13)
  • 10
    0403-081 ...BUSHING
    ...BUSHING
  • 11
    0403-080 ...COLLAR
    ...COLLAR
  • 12
    0423-009 ...CLIP, BALL JOINT
    ...CLIP, BALL JOINT
  • 13
    0405-115 ...BALL JOINT - FRONT
    ...BALL JOINT - FRONT
  • 14
    0503-194 A-ARM, LOWER RIGHT (INC. 12-13) (4X4)
    A-ARM, LOWER RIGHT (INC. 12-13) (4X4)
  • 14
    0503-195 A-ARM, LOWER LEFT (INC. 12-13) (4X4)
    A-ARM, LOWER LEFT (INC. 12-13) (4X4)
  • 15
    0505-026 KNUCKLE - ASSEMBLY - RIGHT (INC. 16-20)
    KNUCKLE - ASSEMBLY - RIGHT (INC. 16-20)
  • 15
    0505-027 KNUCKLE - ASSEMBLY - LEFT (INC. 16-20)
    KNUCKLE - ASSEMBLY - LEFT (INC. 16-20)
  • 16
    0402-089 ...SEAL, WHEEL BEARING - FRONT
    ...SEAL, WHEEL BEARING - FRONT
  • 17
    0423-034 ...CLIP, BEARING
    ...CLIP, BEARING
  • 18
    0402-275 ...BEARING, WHEEL HUB - FRONT
    ...BEARING, WHEEL HUB - FRONT
  • 19
    0505-062 ...KNUCKLE, STEERING - RIGHT
    ...KNUCKLE, STEERING - RIGHT
  • 19
    0505-063 ...KNUCKLE, STEERING - LEFT
    ...KNUCKLE, STEERING - LEFT
  • 20
    0402-069 ...SEAL, WHEEL BEARING - REAR
    ...SEAL, WHEEL BEARING - REAR
  • 21
    8409-030 SCREW, CAP
    SCREW, CAP
  • 22
    0402-907 AXLE, DRIVE - FRONT (INC. 23-24) (4X4)
    AXLE, DRIVE - FRONT (INC. 23-24) (4X4)
  • 23
    0441-400 ...CLIP, RETAINING (4X4)
    ...CLIP, RETAINING (4X4)
  • 24
    0436-276 ...REPAIR KIT, BOOT - FRONT AXLE (4X4)
    ...REPAIR KIT, BOOT - FRONT AXLE (4X4)
  • 25
    0423-334 SCREW, CAP
    SCREW, CAP
  • 26
    8409-060 SCREW, CAP
    SCREW, CAP
  • 27
    1406-034 GUARD, BOOT - AXLE - RIGHT (4X4)
    GUARD, BOOT - AXLE - RIGHT (4X4)
  • 27
    1406-035 GUARD, BOOT - AXLE - LEFT (4X4)
    GUARD, BOOT - AXLE - LEFT (4X4)
  • 28
    0423-101 SCREW, BODY (4X4)
    SCREW, BODY (4X4)
  • 29
    0441-587 WRENCH, SPANNER
    WRENCH, SPANNER
