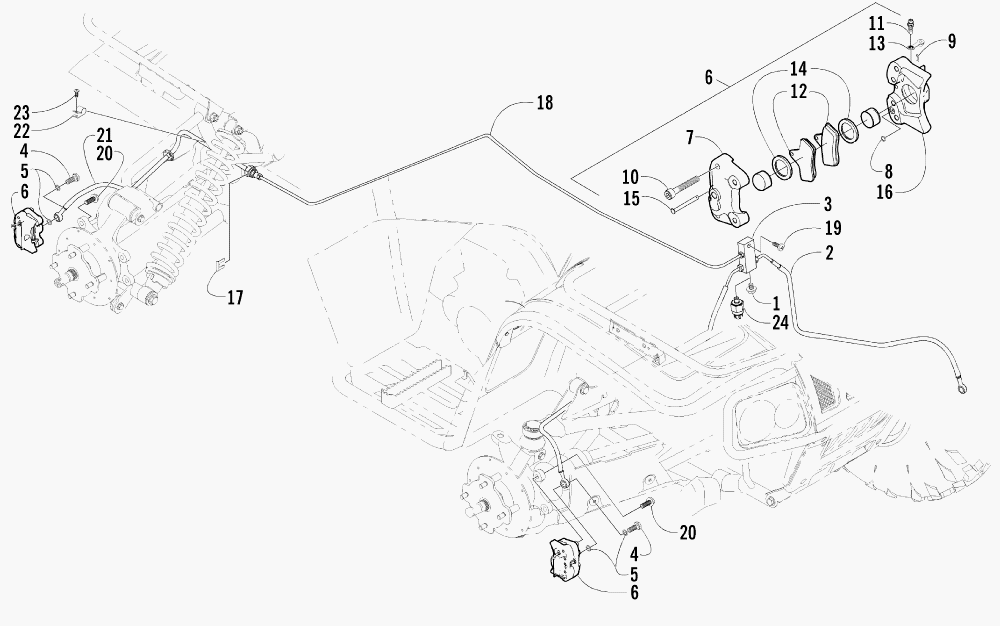

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 300 2X4 (GREEN) [A2003ATF2AUSG] - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    1402-031 PLUG, JUNCTION BLOCK (2X4)
    PLUG, JUNCTION BLOCK (2X4)
  • 2
    0402-986 HOSE, BRAKE - FRONT
    HOSE, BRAKE - FRONT
  • 3
    1402-086 BLOCK, JUNCTION
    BLOCK, JUNCTION
  • 4
    0423-413 BOLT, BANJO FITTING
    BOLT, BANJO FITTING
  • 5
    0423-178 WASHER, CRUSH
    WASHER, CRUSH
  • 6
    0502-335 CALIPER, BRAKE - RIGHT FRONT (INC. 7-16)
    CALIPER, BRAKE - RIGHT FRONT (INC. 7-16)
  • 6
    0502-336 CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 7-16)
    CALIPER, BRAKE - LEFT FRONT AND RIGHT REAR (INC. 7-16)
  • 8
    0402-490 ...O-RING
    ...O-RING
  • 9
    0402-496 ...PIN, COTTER
    ...PIN, COTTER
  • 10
    0402-492 ...SCREW, SOCKET HEAD
    ...SCREW, SOCKET HEAD
  • 11
    0402-493 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 12
    0402-882 ...PAD, BRAKE
    ...PAD, BRAKE
  • 13
    0402-491 ...VALVE, BLEED
    ...VALVE, BLEED
  • 14
    0402-980 ...O-RING, BRAKE CALIPER
    ...O-RING, BRAKE CALIPER
  • 15
    0402-495 ...PIN, BRAKE CALIPER
    ...PIN, BRAKE CALIPER
  • 17
    0402-597 CLIP, BRAKELINE
    CLIP, BRAKELINE
  • 18
    1402-018 TUBE, BRAKELINE - REAR
    TUBE, BRAKELINE - REAR
  • 19
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 20
    8408-825 SCREW, CAP
    SCREW, CAP
  • 21
    1402-020 HOSE, BRAKE - REAR
    HOSE, BRAKE - REAR
  • 22
    0423-415 CLAMP, CABLE
    CLAMP, CABLE
  • 23
    0423-324 SCREW, MACHINE
    SCREW, MACHINE
