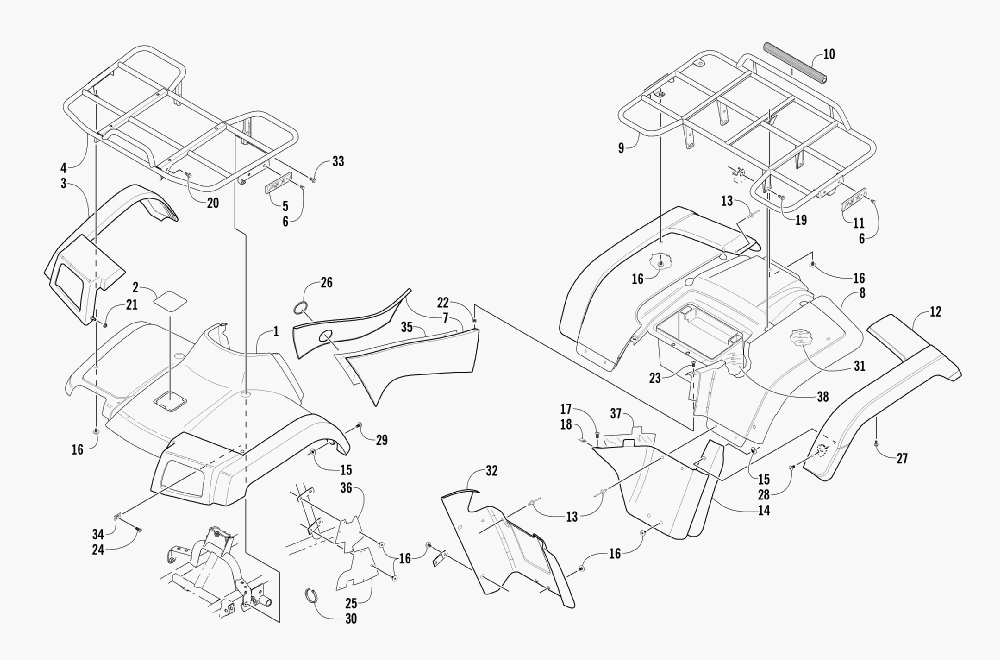

BODY PANEL ASSEMBLY для Arctic Cat 500 4X4 FIS AUTO (RED) [A2002ISM4BUSR] - 2002 года выпуска
-
№АртикулНазвание
-
10506-616 PANEL, FENDER - FRONT (INC. 2) (RED)PANEL, FENDER - FRONT (INC. 2) (RED)
-
10506-584 PANEL, FENDER - FRONT (INC. 2) (GREEN)PANEL, FENDER - FRONT (INC. 2) (GREEN)
-
20406-244 ...COVER, ACCESS (RED)...COVER, ACCESS (RED)
-
20406-975 ...COVER, ACCESS (GREEN)...COVER, ACCESS (GREEN)
-
30506-550 FLARE - FRONT RIGHTFLARE - FRONT RIGHT
-
30506-551 FLARE - FRONT LEFTFLARE - FRONT LEFT
-
40506-547 RACK - FRONTRACK - FRONT
-
50606-526 REFLECTOR, FRONT (AMBER)REFLECTOR, FRONT (AMBER)
-
60623-269 CLIP, RETAININGCLIP, RETAINING
-
70506-548 PANEL, SIDE - RIGHT (RED)PANEL, SIDE - RIGHT (RED)
-
70506-243 PANEL, SIDE - LEFT (RED)PANEL, SIDE - LEFT (RED)
-
70506-549 PANEL, SIDE - RIGHT (GREEN)PANEL, SIDE - RIGHT (GREEN)
-
70506-673 PANEL, SIDE - LEFT (GREEN)PANEL, SIDE - LEFT (GREEN)
-
80506-620 PANEL, FENDER - REAR (RED)PANEL, FENDER - REAR (RED)
-
80506-621 PANEL, FENDER - REAR (GREEN)PANEL, FENDER - REAR (GREEN)
-
90506-608 RACK - REARRACK - REAR
-
100406-293 WRAP, TUBE - REAR RACKWRAP, TUBE - REAR RACK
-
110606-029 REFLECTOR, REAR (RED)REFLECTOR, REAR (RED)
-
120506-552 FLARE, REAR RIGHTFLARE, REAR RIGHT
-
120506-553 FLARE, REAR LEFTFLARE, REAR LEFT
-
130423-046 RIVET, PLASTICRIVET, PLASTIC
-
140506-693 FENDER EXTENSION - REAR RIGHTFENDER EXTENSION - REAR RIGHT
-
140406-085 FENDER EXTENSION - REAR LEFTFENDER EXTENSION - REAR LEFT
-
150423-077 T-NUT W/TEETHT-NUT W/TEETH
-
160423-101 SCREW, BODYSCREW, BODY
-
170623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180423-060 CLIP, TINERMANCLIP, TINERMAN
-
198409-020 SCREW, CAPSCREW, CAP
-
200423-360 SCREW, MACHINESCREW, MACHINE
-
210423-357 NUT, STAMPEDNUT, STAMPED
-
220123-010 NUT, EXPANSIONNUT, EXPANSION
-
230423-068 SCREW, MACHINESCREW, MACHINE
-
248477-616 SCREW, MACHINESCREW, MACHINE
-
251406-006 PANEL, FENDER - INNERPANEL, FENDER - INNER
-
260470-404 GROMMET, FUEL SHUT-OFF VALVEGROMMET, FUEL SHUT-OFF VALVE
-
270423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
280423-355 SCREW, SHOULDERSCREW, SHOULDER
-
290423-356 SCREW, SHOULDERSCREW, SHOULDER
-
300123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
310412-124 SHIELD, HEATSHIELD, HEAT
-
320406-941 PANEL, KICK - RIGHTPANEL, KICK - RIGHT
-
320506-630 PANEL, KICK - LEFTPANEL, KICK - LEFT
-
338408-816 SCREW, CAPSCREW, CAP
-
340423-031 NUT, SPEEDNUT, SPEED
-
350412-142 SHIELD, HEATSHIELD, HEAT
-
361406-063 PANEL, FENDER - INNER RIGHTPANEL, FENDER - INNER RIGHT
-
361406-064 PANEL, FENDER - INNER LEFTPANEL, FENDER - INNER LEFT
-
370412-140 SHIELD, HEATSHIELD, HEAT
-
380412-147 SHIELD, HEATSHIELD, HEAT
