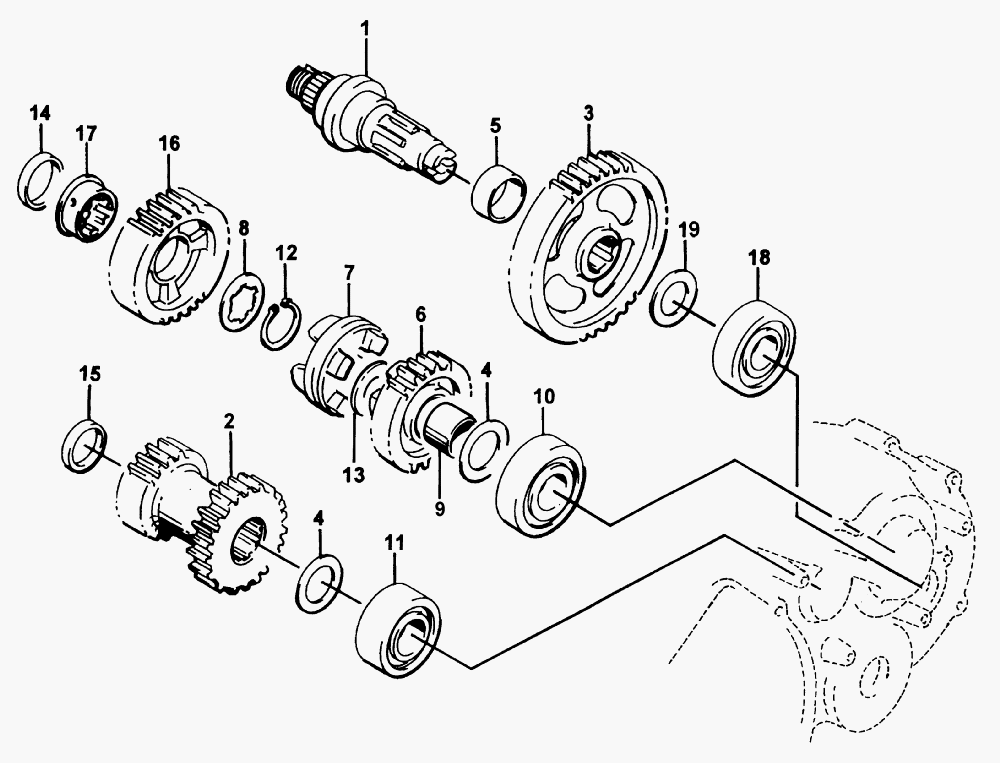

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 400 4X4 FIS MAN (RED) [A2002ISI4AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
13446-262 SHAFT, OUTPUTSHAFT, OUTPUT
-
23446-066 GEAR, IDLEGEAR, IDLE
-
33446-072 GEAR, DRIVENGEAR, DRIVEN
-
43423-150 WASHERWASHER
-
53402-015 SPACER, DRIVESPACER, DRIVE
-
63446-070 GEAR NO. 2GEAR NO. 2
-
73446-108 DOG, SELECT SLIDINGDOG, SELECT SLIDING
-
83423-036 WASHERWASHER
-
93446-103 BUSHINGBUSHING
-
103402-046 BEARING, DRIVESHAFT - LEFTBEARING, DRIVESHAFT - LEFT
-
113402-047 BEARING, CENTER SHAFT - LEFTBEARING, CENTER SHAFT - LEFT
-
123423-066 CIRCLIP NO. 1CIRCLIP NO. 1
-
133423-126 WASHER, GEAR NO. 2WASHER, GEAR NO. 2
-
143446-068 SPACERSPACER
-
153423-148 SPACER, IDLE GEARSPACER, IDLE GEAR
-
163446-067 GEAR NO. 1GEAR NO. 1
-
173446-069 BUSHINGBUSHING
-
183402-045 BEARING SET - LEFTBEARING SET - LEFT
-
193423-150 WASHERWASHER
