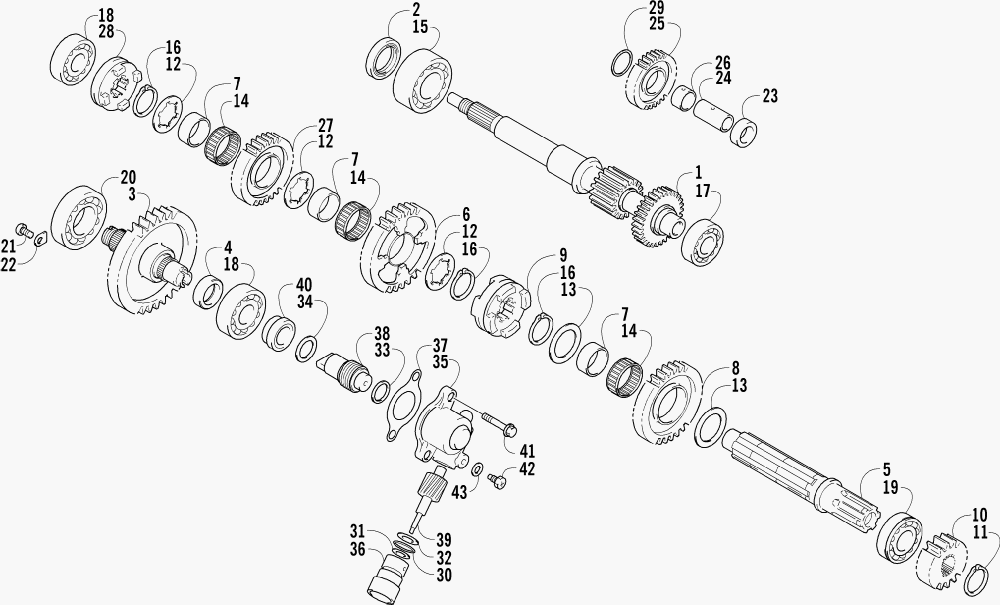

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 375 4X4 AUTO (RED) [A2002ATG4BUSR] - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-665 DRIVESHAFT
    DRIVESHAFT
  • 2
    3402-500 SEAL, DRIVESHAFT
    SEAL, DRIVESHAFT
  • 3
    3402-666 SHAFT, OUTPUT
    SHAFT, OUTPUT
  • 4
    3423-494 SPACER, OUTPUT SHAFT
    SPACER, OUTPUT SHAFT
  • 5
    3402-667 COUNTERSHAFT
    COUNTERSHAFT
  • 6
    3402-668 GEAR, DRIVEN - LOW
    GEAR, DRIVEN - LOW
  • 7
    3402-494 BUSHING
    BUSHING
  • 8
    3402-495 GEAR, DRIVEN - HIGH
    GEAR, DRIVEN - HIGH
  • 9
    3402-496 DOG, SLIDING
    DOG, SLIDING
  • 10
    3402-669 GEAR, DRIVE - NO. 2
    GEAR, DRIVE - NO. 2
  • 11
    3423-191 CIRCLIP
    CIRCLIP
  • 12
    3423-263 WASHER
    WASHER
  • 13
    3423-448 WASHER
    WASHER
  • 14
    3402-498 BEARING
    BEARING
  • 15
    3402-499 BEARING, DRIVESHAFT
    BEARING, DRIVESHAFT
  • 16
    3423-066 CIRCLIP
    CIRCLIP
  • 17
    3003-261 BEARING, DRIVESHAFT - LEFT
    BEARING, DRIVESHAFT - LEFT
  • 18
    3402-045 BEARING, SHAFT
    BEARING, SHAFT
  • 19
    3004-209 BEARING, SHAFT
    BEARING, SHAFT
  • 20
    3402-180 BEARING, OUTPUT SHAFT
    BEARING, OUTPUT SHAFT
  • 21
    3423-435 SCREW, BEARING RETAINER
    SCREW, BEARING RETAINER
  • 22
    3446-031 RETAINER, BEARING
    RETAINER, BEARING
  • 23
    3423-442 SPACER, REVERSE IDLE GEAR
    SPACER, REVERSE IDLE GEAR
  • 24
    3402-634 SHAFT, REVERSE IDLE
    SHAFT, REVERSE IDLE
  • 25
    3402-503 GEAR, REVERSE IDLE
    GEAR, REVERSE IDLE
  • 26
    3446-103 BUSHING, REVERSE IDLE GEAR
    BUSHING, REVERSE IDLE GEAR
  • 27
    3402-635 GEAR, REVERSE DRIVEN
    GEAR, REVERSE DRIVEN
  • 28
    3402-636 DOG, REVERSE DRIVEN GEAR
    DOG, REVERSE DRIVEN GEAR
  • 29
    3402-195 WASHER, REVERSE IDLE GEAR
    WASHER, REVERSE IDLE GEAR
  • 30
    3423-056 O-RING
    O-RING
  • 31
    3402-077 SEAL, DRIVEN GEAR
    SEAL, DRIVEN GEAR
  • 32
    3423-144 WASHER, DRIVEN GEAR
    WASHER, DRIVEN GEAR
  • 33
    3423-336 WASHER
    WASHER
  • 34
    3423-502 WASHER
    WASHER
  • 35
    3446-057 HOUSING, SPEEDOMETER GEAR
    HOUSING, SPEEDOMETER GEAR
  • 36
    3446-058 SLEEVE
    SLEEVE
  • 37
    3446-244 GASKET, HOUSING
    GASKET, HOUSING
  • 38
    3446-284 GEAR, DRIVE
    GEAR, DRIVE
  • 39
    3446-285 GEAR, DRIVEN
    GEAR, DRIVEN
  • 40
    3446-114 SPACER, DRIVEN GEAR
    SPACER, DRIVEN GEAR
  • 41
    3423-346 BOLT, HOUSING
    BOLT, HOUSING
  • 42
    3423-143 BOLT, DRIVEN GEAR
    BOLT, DRIVEN GEAR
  • 43
    3402-009 WASHER, DRIVEN GEAR
    WASHER, DRIVEN GEAR
