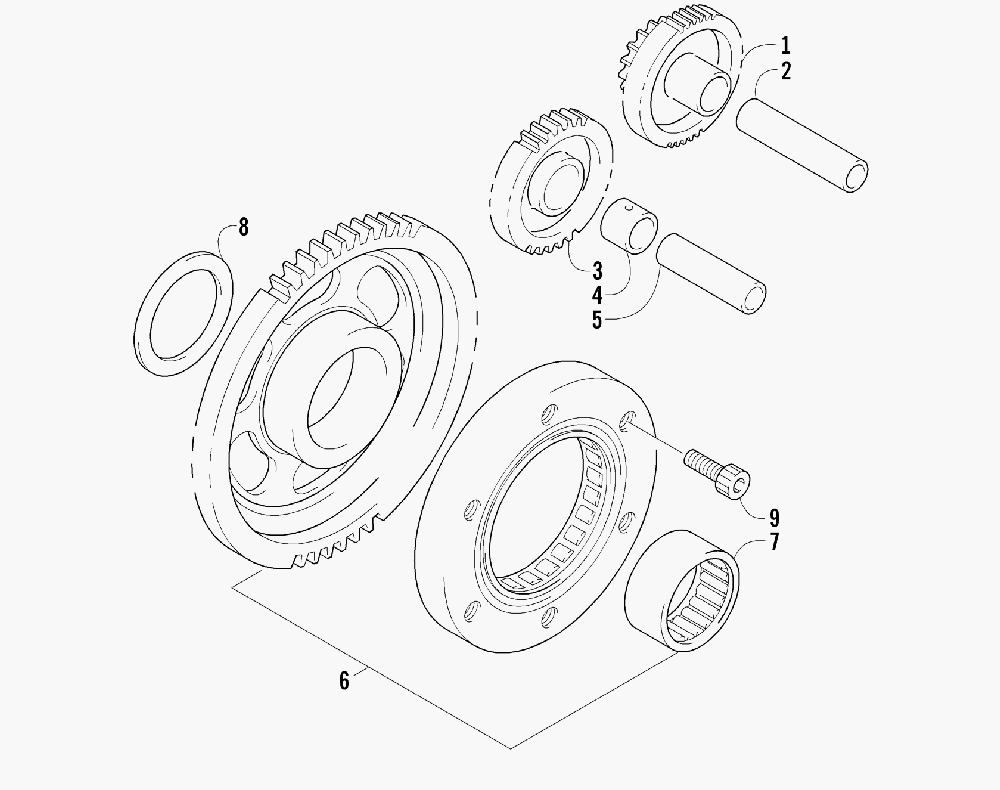

STARTER CLUTCH ASSEMBLY для Arctic Cat 500 4X4 AUTO (RED) [A2001ATM4BUSR] - 2001 года выпуска
-
№АртикулНазвание
-
13402-523 GEAR, STARTER IDLER - NO. 1GEAR, STARTER IDLER - NO. 1
-
23423-331 PINPIN
-
33402-349 GEAR, STARTER IDLER - NO. 2GEAR, STARTER IDLER - NO. 2
-
43423-396 SPACER, STARTER IDLER GEAR NO. 2SPACER, STARTER IDLER GEAR NO. 2
-
53423-397 PINPIN
-
63402-457 CLUTCH, STARTER - SET (INC. 7)CLUTCH, STARTER - SET (INC. 7)
-
73402-063 ...BEARING...BEARING
-
83423-104 WASHERWASHER
-
93423-102 BOLTBOLT
