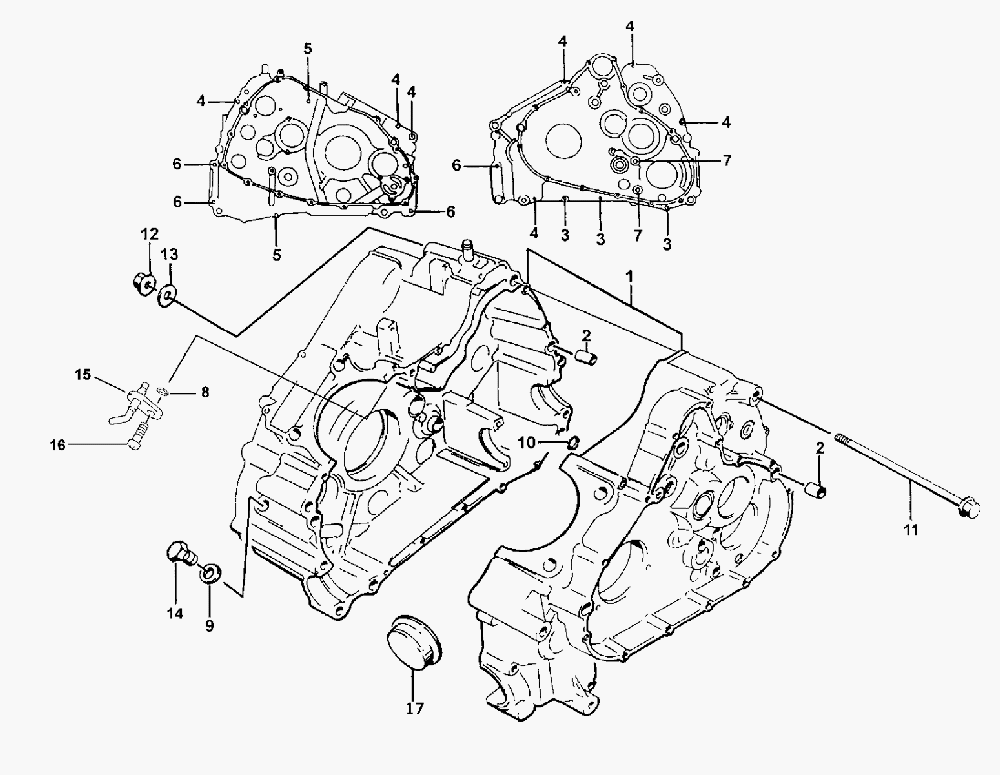

CRANKCASE ASSEMBLY для Arctic Cat 500 4X4 MAN (RED) [A2000ATM4AUSG] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    3402-366 CRANKCASE SET (INC. 2-8, 10, 15, AND 16) (500)
    CRANKCASE SET (INC. 2-8, 10, 15, AND 16) (500)
  • 2
    3423-088 ...PIN, DOWEL
    ...PIN, DOWEL
  • 3
    3423-091 ...SCREW, CAP
    ...SCREW, CAP
  • 4
    3423-092 ...SCREW, CAP
    ...SCREW, CAP
  • 5
    3423-094 ...SCREW, CAP
    ...SCREW, CAP
  • 6
    0693-303 ...SCREW, CAP
    ...SCREW, CAP
  • 7
    3423-093 ...SCREW, CAP
    ...SCREW, CAP
  • 8
    3423-051 ...O-RING (400 4X4 AND 500)
    ...O-RING (400 4X4 AND 500)
  • 9
    3402-011 GASKET
    GASKET
  • 10
    3423-052 O-RING (500)
    O-RING (500)
  • 11
    3423-009 SCREW, CAP
    SCREW, CAP
  • 12
    3423-024 NUT
    NUT
  • 13
    3004-278 WASHER
    WASHER
  • 14
    3423-095 PLUG, OIL GALLERY
    PLUG, OIL GALLERY
  • 15
    3402-369 JET, PISTON COOLING (500)
    JET, PISTON COOLING (500)
  • 16
    3004-552 SCREW (500)
    SCREW (500)
