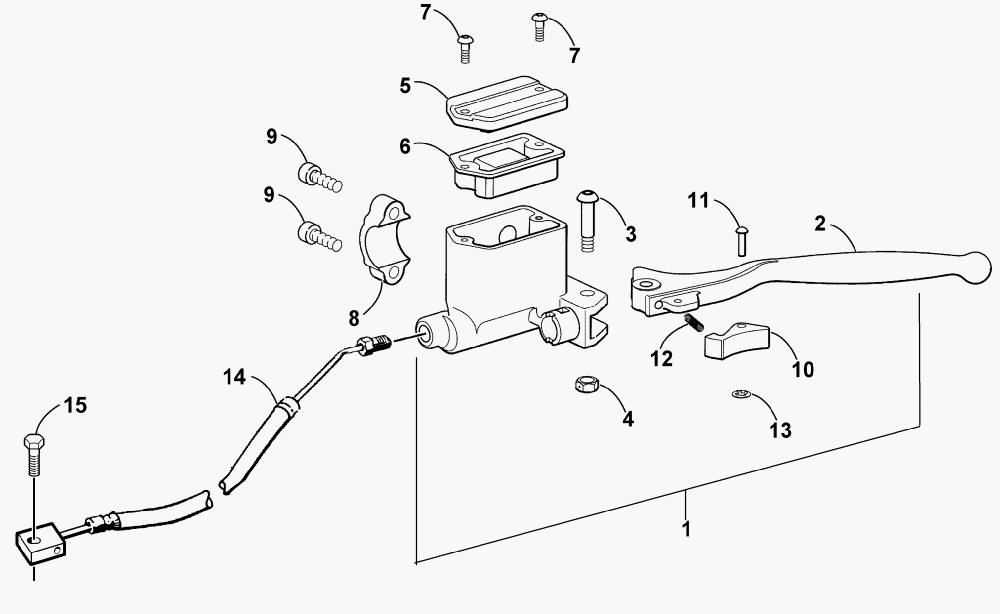

HYDRAULIC HAND BRAKE ASSEMBLY (VIN # 319568-320799; 324000 AND UP) для Arctic Cat 500 4X4 AUTO (GREEN) [A2000ATM4BUSG] - 2000 года выпуска`
-
№АртикулНазвание
-
10502-073 CYLINDER, MASTER - ASSEMBLY (INC. 2-13)CYLINDER, MASTER - ASSEMBLY (INC. 2-13)
-
20402-542 ...LEVER, BRAKE...LEVER, BRAKE
-
30402-549 ...SCREW...SCREW
-
40402-557 ...NUT, LOCK...NUT, LOCK
-
50402-544 ...COVER, RESERVOIR...COVER, RESERVOIR
-
60402-553 ...BLADDER, RESERVOIR...BLADDER, RESERVOIR
-
70402-545 ...SCREW...SCREW
-
80402-558 ...CLAMP, MASTER CYLINDER...CLAMP, MASTER CYLINDER
-
90402-562 ...SCREW...SCREW
-
100402-546 ...LEVER, BRAKE - LOCK...LEVER, BRAKE - LOCK
-
110402-547 ...RIVET...RIVET
-
120402-559 ...SPRING, BRAKE - LOCK LEVER...SPRING, BRAKE - LOCK LEVER
-
130402-561 ...WASHER, LOCK - RETAINING...WASHER, LOCK - RETAINING
-
140402-050 HOSE, BRAKELINEHOSE, BRAKELINE
-
158476-625 SCREW, MACHINESCREW, MACHINE
