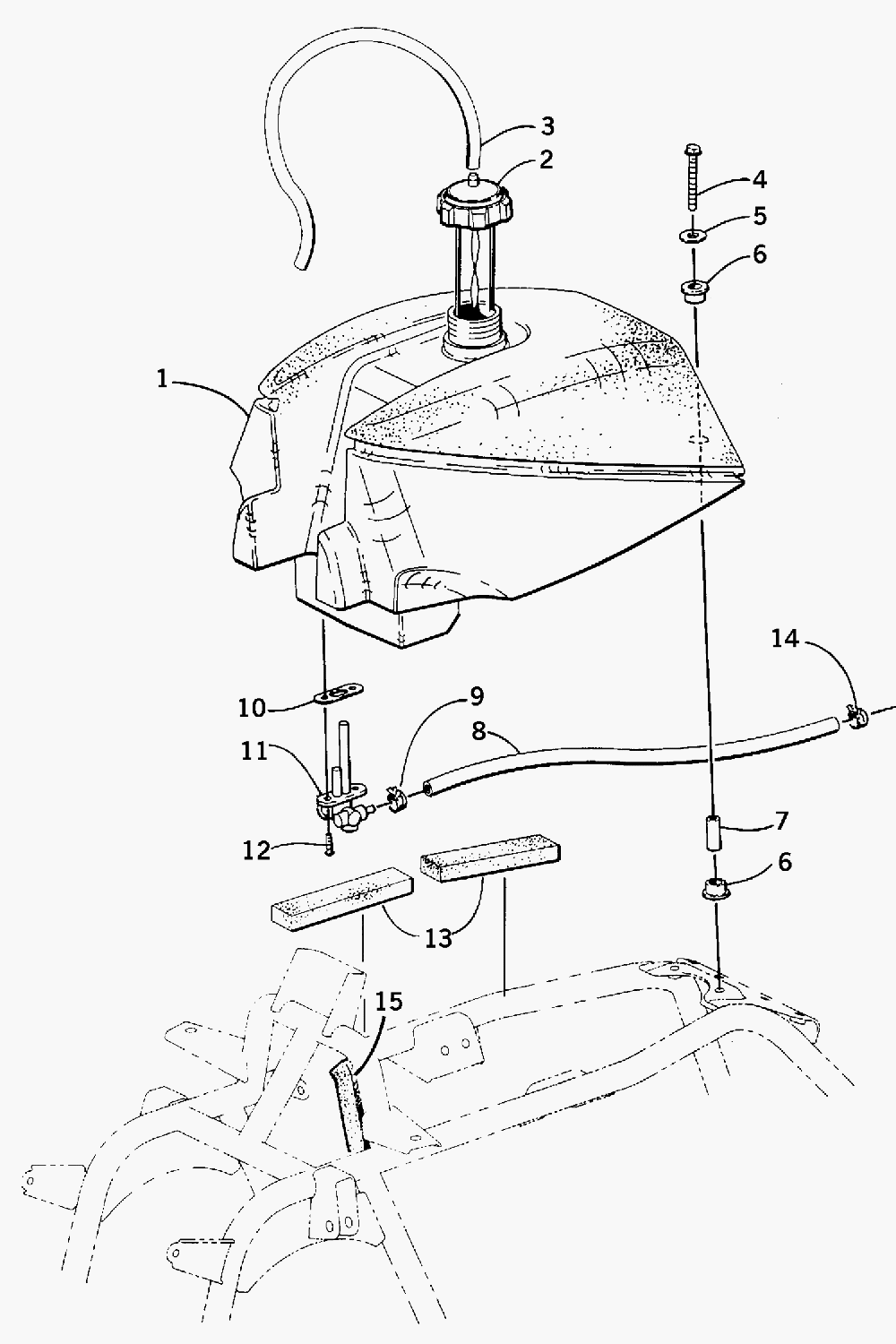

FUEL TANK ASSEMBLY для Arctic Cat 300 2X4 (RED) [A2000ATF2AUSR] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0570-014 TANK, FUEL (INC. 2-3 AND 6-12) (300)
    TANK, FUEL (INC. 2-3 AND 6-12) (300)
  • 2
    0470-369 ...CAP, FUEL TANK (INC. 3) (300)
    ...CAP, FUEL TANK (INC. 3) (300)
  • 3
    0470-316 ......HOSE, FUEL CAP VENT
    ......HOSE, FUEL CAP VENT
  • 4
    8476-650 SCREW, CAP
    SCREW, CAP
  • 5
    0623-184 WASHER
    WASHER
  • 6
    0406-169 BUSHING, FUEL TANK MOUNT
    BUSHING, FUEL TANK MOUNT
  • 7
    0406-170 COLLAR, FUEL TANK MOUNT
    COLLAR, FUEL TANK MOUNT
  • 8
    0610-007 HOSE, FUEL
    HOSE, FUEL
  • 9
    0423-048 CLAMP, HOSE - SPRING
    CLAMP, HOSE - SPRING
  • 10
    0470-364 GASKET, FUEL SHUT-OFF VALVE
    GASKET, FUEL SHUT-OFF VALVE
  • 11
    0470-365 VALVE, FUEL SHUT-OFF (INC. 10)
    VALVE, FUEL SHUT-OFF (INC. 10)
  • 12
    8471-616 SCREW, MACHINE
    SCREW, MACHINE
  • 13
    0417-001 PAD, FUEL TANK
    PAD, FUEL TANK
  • 14
    0423-152 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    0406-389 PAD, FUEL TANK - FRONT
    PAD, FUEL TANK - FRONT
