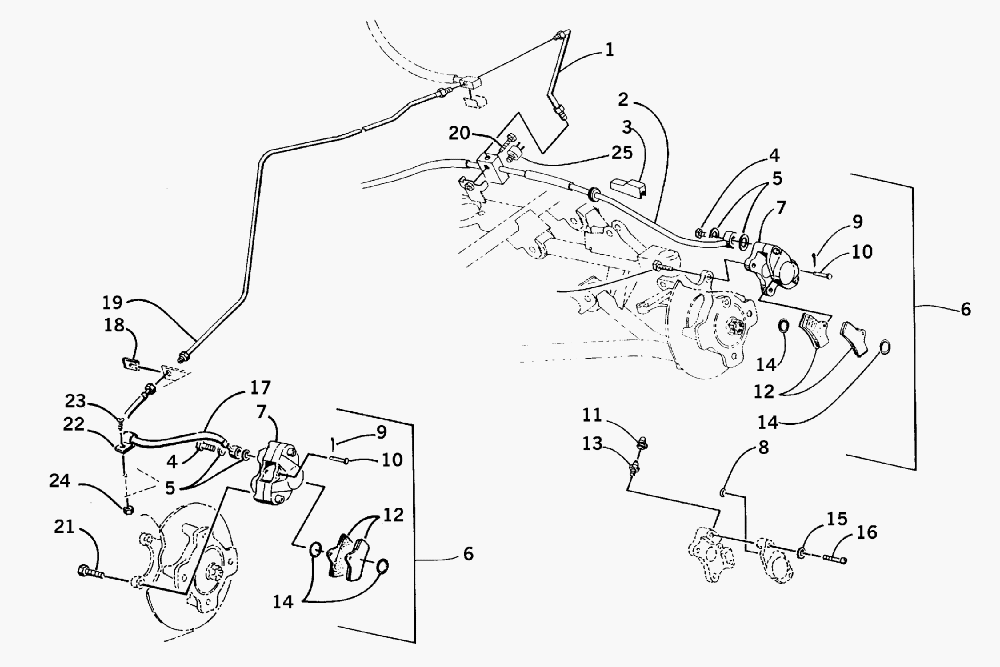

HYDRAULIC BRAKE ASSEMBLY (UP TO VIN H7YT308775) для Arctic Cat 300 2X4 (GREEN) [A2000ATF2AUSG] - 2000 года выпуска

  • №
    Артикул
    Название
  • 1
    0402-053 TUBE, BRAKE LINE - FRONT (2X4)
    TUBE, BRAKE LINE - FRONT (2X4)
  • 2
    0402-051 HOSE, BRAKE - FRONT (2X4)
    HOSE, BRAKE - FRONT (2X4)
  • 3
    0402-073 BLOCK, MOUNTING
    BLOCK, MOUNTING
  • 4
    0423-038 BOLT, OIL
    BOLT, OIL
  • 5
    0423-039 WASHER, CRUSH
    WASHER, CRUSH
  • 6
    0402-010 CALIPER, BRAKE - RIGHT FRONT (INC. 7-16)
    CALIPER, BRAKE - RIGHT FRONT (INC. 7-16)
  • 6
    0402-011 CALIPER, BRAKE - LEFT FRONT AND REAR (INC. 7-16)
    CALIPER, BRAKE - LEFT FRONT AND REAR (INC. 7-16)
  • 8
    0402-164 ...O-RING
    ...O-RING
  • 9
    0117-868 ...PIN, COTTER
    ...PIN, COTTER
  • 10
    0402-142 ...PIN, BRAKE CALIPER
    ...PIN, BRAKE CALIPER
  • 11
    0402-143 ...CAP, BLEED VALVE
    ...CAP, BLEED VALVE
  • 12
    0402-096 ...PAD, BRAKE
    ...PAD, BRAKE
  • 13
    0402-167 ...VALVE, BLEED
    ...VALVE, BLEED
  • 14
    0402-141 ...O-RING, BRAKE CALIPER
    ...O-RING, BRAKE CALIPER
  • 15
    0402-165 ...WASHER
    ...WASHER
  • 16
    0402-166 ...SCREW, SOCKET HEAD
    ...SCREW, SOCKET HEAD
  • 17
    0402-254 HOSE, BRAKE - REAR
    HOSE, BRAKE - REAR
  • 18
    0402-115 CLIP, BRAKE LINE
    CLIP, BRAKE LINE
  • 19
    0402-170 TUBE, BRAKE LINE - REAR
    TUBE, BRAKE LINE - REAR
  • 20
    8476-625 SCREW, MACHINE
    SCREW, MACHINE
  • 21
    8408-825 SCREW, CAP
    SCREW, CAP
  • 22
    0123-269 CLAMP, CABLE
    CLAMP, CABLE
  • 23
    8476-612 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0624-250 NUT
    NUT
